Home ProductsHydraulic Mobile Crane

XCT8L4 yellow truck mounted mobile crane For Lifting Operation

I'm Online Chat Now
Certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
Your quality is trusty, we are pleased to choose this reliable partner

—— Minas Gerais

Your good service and prompt reactions are greatly appreciated, your porducts are also highly impressed me by it's good quality and competitive price.

—— S.Sahota

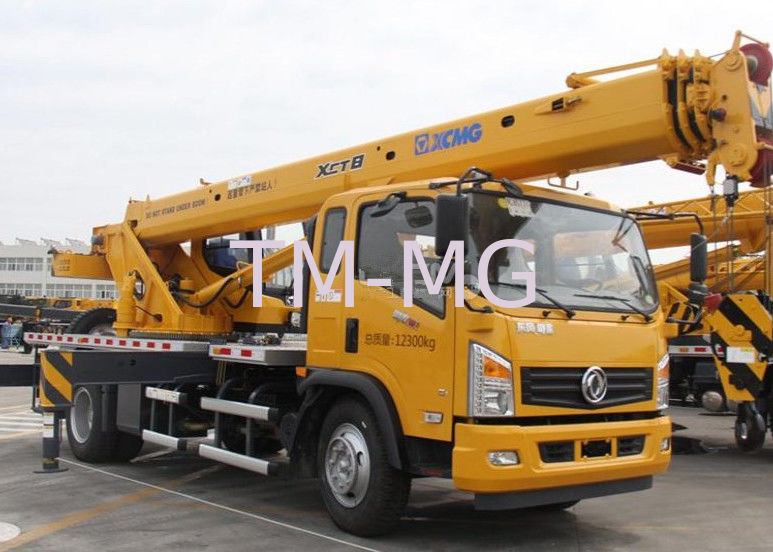

XCT8L4 yellow truck mounted mobile crane For Lifting Operation

XCT8L4 yellow truck mounted mobile crane For Lifting Operation
XCT8L4 yellow truck mounted mobile crane For Lifting Operation XCT8L4 yellow truck mounted mobile crane For Lifting Operation

Large Image :  XCT8L4 yellow truck mounted mobile crane For Lifting Operation Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: XCT8L4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Max. Total Rated Lifting Capacity: 8000kg Base Boom: 8.5m
Max Speed: 90m Total Weight: 12300/12100kg
High Light:

hydraulic truck crane

,

cargo crane truck



XCT8L4 yellow truck mounted mobile crane For Lifting Operation





Technical Parameter



Classificatory

Item

Unit

Parameter

Outline dimension

Overall length

mm

9375

Overall width

mm

2400

Overall height

mm

2400/3170

Mass

Total mass in travel state

kg

12300/12100

Axle load

Front Axle

kg

--

Rear Axle

kg

--

Travel performance

Travel speed

Max. travel speed

km/h

90

Turning diameter

Min. turning diameter

m

16

Min. ground clearance

mm

260

Approach angle

(°)

18

Departure angle

(°)

13

Braking distance

m

10

Max. grade-ability

35

Fuel consumption for 100km

L

18

Power

Engine rated output

kW/(r/min.)

103/2600,106/2500

Engine rated torque

N.m/(r/min.)

 --

Engine rated speed

rpm.

--







Feature



More excellent performance



• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.





More reliable quality


• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.





Easier to operate


• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.





Easier to maintain


• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
• Fully covered walking plate supplies a platform for the maintenance, and effectively protects the parts of the machine.





More energy-efficient and environmental friendly


• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the high power radiator, avoiding the system from bad cooling, solving the problem of oil overheating, and prolonging the service life of the hydraulic oil.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value
