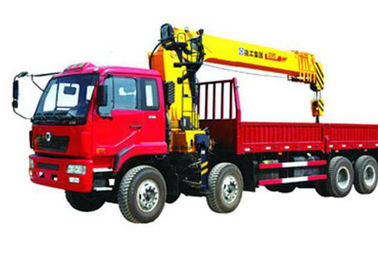

Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow

Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow
Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow

Large Image :  Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ16SK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Telescopic Boom Crane
Max. Lifting Capacity: 16 Ton Max. Lifting Moment: 40 T.M
Max. Lifting Height: 20m Crane Weight: 6020 Kg
Oil Tank Capacity: 260L Rotation Angle: All Rotation
High Light:

telescoping boom crane

,

telescopic truck crane



Mobile Telescopic Boom Truck Crane, 16T 80 L/min Oil Flow





Quick Details:



Brand: XCMG

Name: Telescopic boom crane, Lorry mounted crane, Hydraulic truck crane

Max. Lifting Capacity: 16 ton

Max. Lifting Moment: 40 T.M

Max. Oil Flow of Hydraulic System: 80 L/min

Max. Lifting Height: 20meters

Crane Weight: 6020 kg

Oil Tank Capacity: 260 L





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ16SK4Q is lifting capacity is 14tons moment is 40 T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­





Specifications:



Model SQ16SK4Q Unit
Max. Lifting Capacity 16000 kg
Max. Lifting Moment 40 T.M
Recommend Power 45 kw
Max. Oil Flow of Hydraulic System 80 L/min
Max. Pressure of Hydraulic System 28 MPa
Oil Tank Capacity 260 L
Rotation Angle All Rotation
Crane Weight 6020 kg
Installation Space 1400 mm
Choice of Chassis

BJ1317VNPJJ-S5;

NXG1310D3ZEX;

DFL1311A3;





SQ16SK4Q Lifting capability diagram
Working radius(m) 2.7 5.6 8.5 11.5 14.5 18.5
Lifting capacity(kg) 16000 7000 4200 3200 2200 1000





Dimension drawing

Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 0


Optional parts:



1. Moment limited device
Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 1

  1. Remote control equipment
    Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 2
  2. Anti-overwind magnet valve
    Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 3
  3. High seat on column
    Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 4
  4. Work light
    Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 5
  5. Assisatant stabilizer leg
    Mobile Telescopic Boom Truck Crane , 16T 80 L/min Oil Flow 6



Stabilizer leg Spread
Fixed 2179mm
Single extension 2256-3556mm
Double extension 2212-4752mm





Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.

4, Compact hinge point design take up smaller space.

5, The worK is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.
