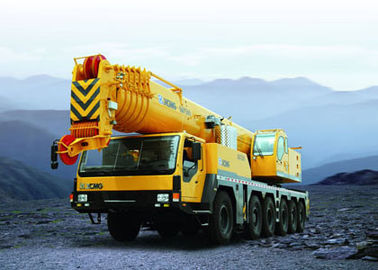

Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction

Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction
Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction

Large Image :  Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QAY240
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Overall Length: 15918mm Overall Width: 3080mm
Overall Height: 4000mm Max. Rated Total Lifting Capacity: 240t
Approach Angle: 25° Departure Angle: 18­°
High Light:

mobile hydraulic crane

,

cargo crane truck



Durable QAY240 Hydraulic Mobile Crane 240Ton , All Terrian Crane For Construction





Feature:



Based on the success of QAY130, QAY160, and QAY200 all terrain truck cranes, QAY 240 is another new all terrain product developed by our company through extensive market research and technical demonstration. It inherits the successful experience, and adopts new materials, new technologies, and the most advanced steed structure design and computer control technique. The main hydraulic parts and load bearing materials adopts international parts and components, effectively improving the product’s performance and reliability. The application of hydropneumatic suspension all terrain chassis, electronic proportional control system, limit load control variable hydraulic system, U jib technique greatly improving the performance and grade of the machine. The machine has modern design, compact and reasonable layout, and excellent travel and lifting performance. QAY240 which represented the highest design level at that time attended the 2007 Munich Bauma Exhibition. It is the first time for the Chinese high-level crane shown on the international stage, extending the domestic crane’s influence in the world.





Technical Parameter



Classification

Item

Unit

QAY240

Dimension


Overall length

mm

15918

Overall width

mm

3080

Overall height

mm

4000





Weight

Overall weight in travel

kg

72000

Axle load

Axle 1, 2

kg

12000

Axle 3, 4

kg

12000

Axle 5

kg

12000









Power

Superstructure engine

Rated power

kw/(r/min)

194/2100

Rated torque

N.m/(r/min)

1050/1400

Rated speed

r/min

2100

Carrier engine

Rated power

kw/(r/min)

420/1800

Rated torque

N.m/(r/min)

2700/1080

Rated speed

r/min

1800

Max. travel speed

km/h

71

Min. turning diameter

m

24

Min. ground clearance

mm

280

Approach angle

°

25

Departure angle

°

18­

Braking distance (at 30km/h)

m

≤10

Max. grade ability

%

48

Fuel consumption for 100km

l

90




Classification

Item

Unit

QAY240

Main performance

Max. rated total lifting capacity

t

240

Min. rated working radius

m

3

Turning radius at turntable tail (counterweight)

mm

480

Max. lifting torque

Base boom

kN.m

7797

Fully extended boom

kN.m

2940

Outrigger span

Longitudinal/lateral

m

9.625/8.7(6.5)

Lifting height

Base boom

m

12.6

Fully extended boom

m

65.6

Fully extended boom+ jib

m

85.7

Boom length

Base boom

m

13.2

Fully extended boom

m

67

Fully extended boom + jib

m

87

Working speed

Boom luffing

Boom raising

m

65

Boom extension/retraction

Full extension/full retraction

m

650

Max. swing speed

r/min

1.6

Outrigger telescoping time

Outrigger beam

Extension

S

50

Retraction

S

40

Outrigger jack

Extension

S

50

Retraction

S

45

Lifting speed (single rope, layer 4)

Main winch

No load

m/min

115

Aux. winch

No load

m/min

118



The specification is subject to change without notice.
