Product Details:
Payment & Shipping Terms:
|
| Model: | XCT35 | Max.rated Capacity: | 35t |
|---|---|---|---|
| Engine Model: | SC9DF290.1Q4/D10.31-40 | Total Weight In Travel: | 35000kg |
| Highlight: | mobile hydraulic crane,cargo crane truck |
||

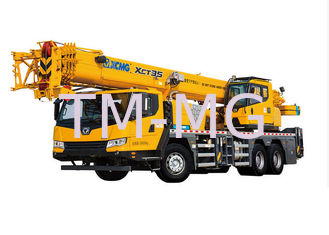

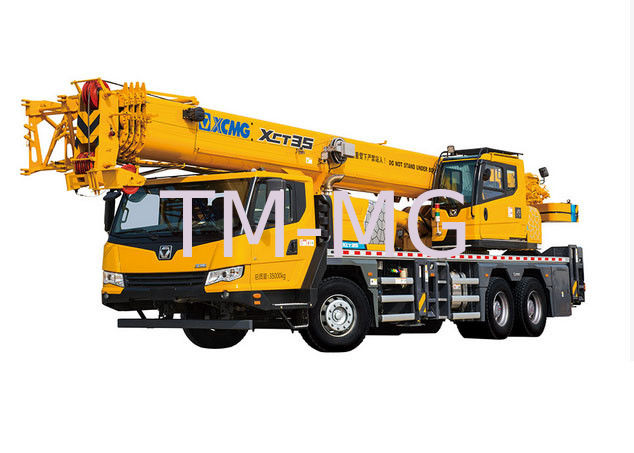

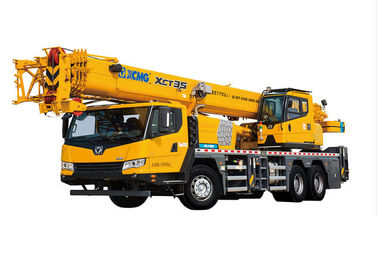

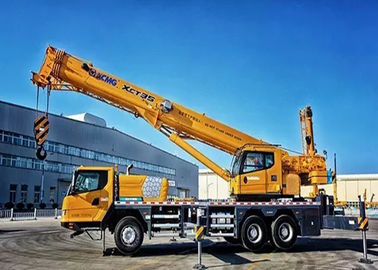

35t Hydraulic Mobile Crane , XCT35 XCMG telescopic truck crane
Feature
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.
Technical Parameter
|
Dimension |
Unit |
XCT35 |
|
Overall length |
mm |
13065 |
|
Overall width |
mm |
2750 |
|
Overall height |
mm |
3540 |
|
Weight |
|
|
|
Total weight in travel |
kg |
35000 |
|
Front axle load (axle 1, 2, 3) |
kg |
|
|
Rear axle load (axle 4, 5) |
kg |
|
|
Power |
|
|
|
Engine model |
|
SC9DF290.1Q4/D10.31-40 |
|
Engine rated power |
kW/(r/min) |
213/1900 228/1900 |
|
Engine rated torque |
N.m/(r/min) |
1400/1400 1390/ (1200-1500) |
|
Travel |
|
|
|
Max. travel speed |
km/h |
90 |
|
Min. turning diameter |
m |
22 |
|
Min. ground clearance |
mm |
260 |
|
Approach angle |
° |
19 |
|
Departure angle |
° |
12 |
|
Max. grade ability |
% |
42 |
|
Fuel consumption for 100km |
L |
32 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
35 |
|
Min. rated working radius |
m |
3 |
|
Base boom |
m |
10.1 |
|
Fully extended boom |
m |
41 |
|
Fully extended boom+ jib |
m |
56.8 |
|
Working speed |
|
|
|
Boom luffing time |
s |
80 |
|
Boom full extension time |
s |
90 |
|
Max. swing speed |
r/min |
2.5 |
The specification is subject to change without notice.
