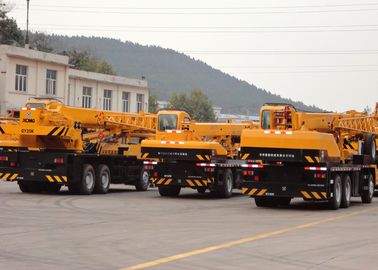

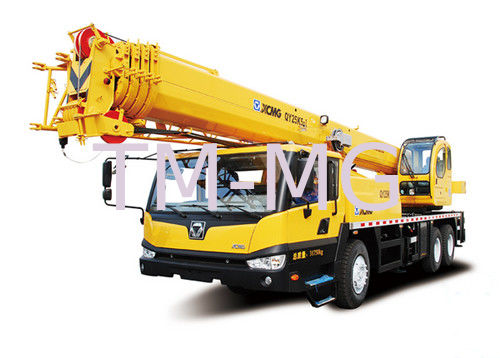

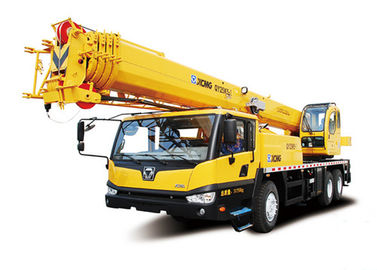

25 Ton Hydraulic MobileTruck Crane QY25K5-I With Retractable Boom

25 Ton Hydraulic MobileTruck Crane QY25K5-I With Retractable Boom
25 Ton Hydraulic MobileTruck Crane QY25K5-I With Retractable Boom 25 Ton Hydraulic MobileTruck Crane QY25K5-I With Retractable Boom

Large Image :  25 Ton Hydraulic MobileTruck Crane QY25K5-I With Retractable Boom Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE ISO
Model Number: QY25K5-I
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Model: QY25K5-I Engine Model: SC8DK280Q3 WD615.329
Overall Length: 12300mm Overall Width: 2500MM
Overall Height: 3350mm Approach Angle: 16°
Departure Angle: 13° Max. Grade Ability: 40%
Max. Lifting Torque: 961kN.m Base Boom: 10.4m
High Light:

mobile hydraulic crane

,

hydraulic truck crane



25 Ton Hydraulic Mobile Truck Crane





Description:



Our truck crane adopts full luxury cab with large view and new orthodrome streamline operating cab, which is good looking. Adopt five-segment oval rope retractable boom with double-cylinder and two-segment jib, greatly improving the working scope of the machine. The design of the streamline boom head is in keeping with the style of the machine. The boom and jib adopt new connection method, which is convenient to dismantle and install. It is equipped with the high-power environment protection engine, improving the chassis power and the trafficability.More excellent performance





Applications:



Truck Cranes has unique expertise in many product applications. Our team combined by engineers and product specialists have on-site knowledge of the unique challenges facing our equipment in a wide variety of applications.





Specifications:



Dimension

Unit

QY25K5-I

Overall length

mm

12300

Overall width

mm

2500

Overall height

mm

3350

Weight





Total weight in travel

kg

31750

Front axle load

kg

6550

Rear axle load

kg

25200

Power





Engine model



SC8DK280Q3

WD615.329

Engine rated power

kW/(r/min)

206/2200

213/2200

Engine rated torque

N.m/(r/min)

1112/1400

1160/1400

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

22

Min. ground clearance

mm

260

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

40

Fuel consumption for 100km

L

≈37

Main performance





Max. rated total lifting capacity

t

25

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

961

Base boom

m

10.4

Fully extended boom

m

39.5

Fully extended boom+jib

m

47.8

Longitudinal outrigger span

m

5.14

Lateral outrigger span

m

6

Working speed





Boom luffing time

s

68

Boom full extension time

s

150

Max. swing speed

r/min

2.5

Max. speed of main winch (single rope) (no load)

m/min

125

Max. speed of aux. winch (single rope) (no load)

m/min

125





Competitive Advantage:



• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.


• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.



• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.



• The working condition expands twice. Newly add 5t counterweight.


• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.


• The humanity design makes the cab and control cab more spacious, and easy to operate.


• Six unique manufacturing technologies ensure the high quality.
