209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator

209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator
209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator 209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator 209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator

Large Image :  209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator Get Best Price

Product Details:
Place of Origin: China
Brand Name: ccmie
Certification: ISO
Model Number: 209-27-00160
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: standard
Delivery Time: in 20 days
Payment Terms: L/C, T/T
Supply Ability: 10000pc/year
Detailed Product Description
Condition: New Application: Construction / Agriculture / Mining Industry
Lifetime: 5000 -8000 Hours Stolen Material: 100cr6 / Gcr15 / 15cr3Mo
Processor: Forging And Casting
High Light:

209-27-00160

,

Excavator Floating Ring Seal

,

ISO Floating Ring Seal

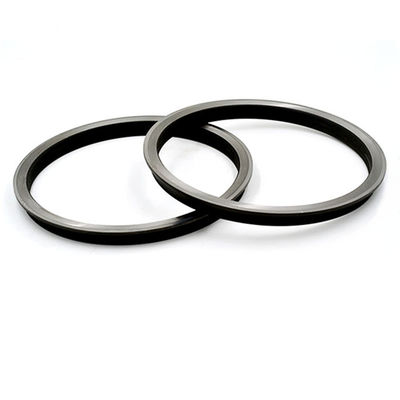

Floating Seal 209-27-00160 for PC850-8 travel motor excavator





One Set = 2 Metal Rings +2 Rubber Rings
Specifications of metal ring
material Gcr15 / 100Cr6 branch 15Cr3Mo
Surface Smoothness / Roughness ≤Ra0.2μm 6.3-12.5μm
work Face Smoothness ≤Ra0.015μm ≤Ra0.1μm
Pressure It is loading ≤0.15MPa ≤0.3 MPA
Lohari Queue Speed 2 m. / From 3m / From
Temperature Range -100 ~ 200 ℃ -40 ~ 160 ° C
Hardness (HRC) 58-62 60-68
Life span(Hours) 3000 5000
Specifications of rubber ring
material NBR Silicon FKM
Hardness 60 degrees ~ 65 degrees 60 degrees ~ 65 degrees 72 degrees ~ 78 °
the minimum Flexible Power 11MPa 10.6Mpa 11MPa
the minimum Elongation On break 300% 400% 260%
permanent Deformation 12% 8% 25%
Temperature Range -40 ℃ - + 120 ℃ -49 ℃ - + 230 ℃ -30 ℃ - + 250 ℃



application

- Farm, construction, earthmoving, coal mining machinery

- Excavators, bulldozers, tractors, cranes, forklifts, heavy trucks, backhoes

- Undercartage, hydraulic motor, travel motor, gearbox axle, wheel hub, tunneling



209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator 0

209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator 1

209-27-00160 Floating Ring Seal For PC850-8 Travel Motor Excavator 2







Other part numbers:

  Part numbers
Komatsu   110-30-00085  110-30-00045  141-30-00610  140-30-00040  140-30-00141   170-30-00110  170-30-00210  175-30-00070  175-30-00700  20Y-30-00040   130-27-00020  150-27-00025  150-27-00026  150-27-00027  204-30-00041   20Y-30-00100  150-30-00035  154-30-00035  154-30-00830  154-30-00832    154-30-00833  170-27-00010  198-30-00072  21T-30-00110  198-30-00072   423-33-00020  423-33-00021  205-30-00052  14X-27-00100  205-30-00050   22B-30-00030  195-27-00022  175-27-00120  175-30-00900  20Y-30-00430   22U-30-00060  20Y-30-13210  204-30-00100  198-30-00140 195-27-00100    568-33-00016  TZES 100-154S
CAT  9G5311  9W6666  1M8747  9W6647  5M1176  6T8433  9G5315  9W6671  9W6680  9W7220  8E5609  9W7225  6P3595  9G5345  9W6690  9W6691  9W7216  2M2858  9W7223  9W6691  1P7249  5P7146  9W7243  7M0481  5P0204  7T0159   9W6651  9W7233  7T0157  108-6997  5P0373  9W7213  9P9663  8E2042  9W6694  9W3732  9W7201  9W7202  9W6620  9W6619  9W3956 169-6442 6Y0855  9W7204  6Y0856  9G5349  3144128  205-9025 9W7204  6Y0856  9G5349  1796862  1796863  145-6034  9W6644  9W6822  3T6602  365-4920  2627244  3176441  9W7206  1796864  1C9748  1456035  3144130  1791292  
Hitachi  4176379  4110358  4128201  4508192  4128201  4508192  4060222  4110359  4512571  4060225  4047279  4104605  4110360  4153468  4163731  4068433  4153711  4163711  4110362  4153732  4508193  4056360  4111361  4507221  4642180  4110366  4110367  4513173  4092483  4082631  4110368  4110369  4114753  4634693  4514259  4179741  4066695  4317584  4138544  4082698  ZAX200-5G           XKAH-00916  XKAQ-00219  XKAH-01012 4245703  4200413  4350347  4344155  4082698 





Other parts number you need can contact us to check!
