Product Details:
Payment & Shipping Terms:
|
| Product Name: | Earthmoving Machinery | Bucket Capacity: | 0.34m³ |
|---|---|---|---|
| Operation Weight: | 7,425kg | Rated Power: | 60kw |
| Condition: | New | ||
| Highlight: | construction heavy equipment,heavy earth moving machinery |
||

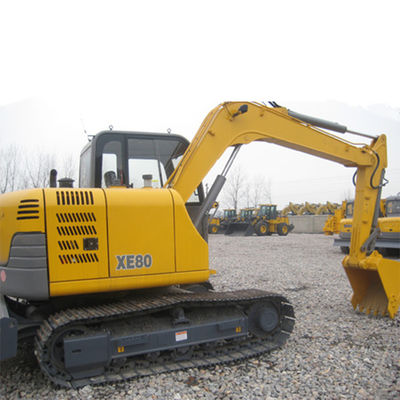

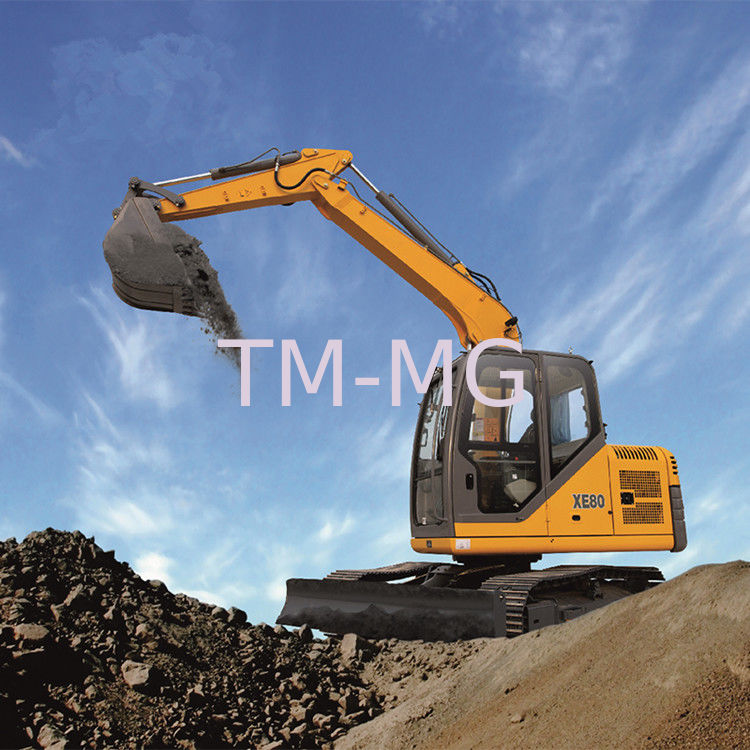

XE80 Excavator 60kw Earthmoving Machinery With Efficient Low Consumption
Specification
Bucket: 0.34m3
Rated power: 60kw
Weight: 8270kg
KAWASAKI hydraulic system
AC driving cab
Well digger with good performance/XCMG Excavator
1. Imported engine of environment friendly and efficient low-consumptions for excavator
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. Excavator with High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance excavator
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
Technical Parameter:
|
Excavator Model |
XE80 |
||
|
Excavator Bucket capacity |
m3 |
0.34 |
|
|
Standard bucket width |
mm |
722 |
|
|
Operation weight |
kg |
7,425 |
|
|
Excavator Dimension |
Overall length |
mm |
6,155 |
|
|
Overall width |
mm |
2,220 |
|
|
Overall height |
mm |
2,618 |
|
|
Min. clearance |
mm |
392 |
|
Excavator Engine |
Model |
CumminisB3.3 |
|
|
|
Total displacement |
L |
3.3 |
|
|
Rated output power |
KW/rpm |
60/2200 |
|
Digging performance |
Max. digging height |
mm |
7,167 |
|
|
Max. dumping height |
mm |
5,100 |
|
|
Max. digging depth |
mm |
4,140 |
|
|
Max. vertical digging depth |
mm |
3,218 |
|
|
Max. digging radius |
mm |
6,375 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
1,815 |
|
|
Min. rear slew radius |
mm |
1,770 |
|
|
Bucket digging force |
kn |
53.6 |
|
Excavator Track type |
Steel |
||
|
Excavator Track width |
mm |
450 |
|
|
Travel System |
Track length |
mm |
2,752 |
|
|
Wheel base |
mm |
2,119 |
|
|
Track gauge |
mm |
1,700 |
|
|
Travel speed (Gear I/II) |
km/h |
4.2/2.7 |
|
|
Gradeability |
% |
70 |
|
Excavator Slew speed |
rpm |
12 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
|
|
|
Bulldozing plate height |
mm |
|
|
|
Lifting distance |
mm |
|
|
Excavator Hydraulic pump type |
Variable pump*1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Excavator Fuel tank capacity |
L |
135 |
|
|
Hydraulic oil tank capacity |
L |
130 |
|
