Product Name: | Earthmoving Machinery | Bucket Capacity: | 1.2m³ |
---|---|---|---|
Operation Weight: | 25500kg | Condition: | New |
High Light: | earth moving equipment,heavy earth moving machinery |

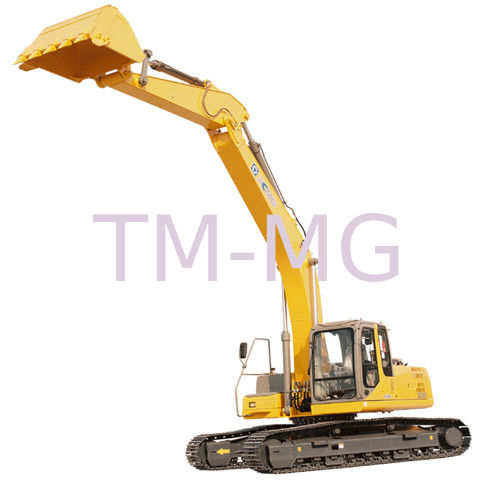

XE265C Excavator Earthmoving Machinery With Piston Hydraulic Motor
Description:
Bucket capacity:1.2 m3
Max. digging height:9662mm
Max. digging depth:6895mm
Engine:Original ISUZU 135.5KW
Kawasaki hydraulic parts, AC cab
Operating weight: 25500kg
Dimension (L×W×H ):10160×3190×3000mm
Parameter:
Model | Unit | XE265C | |
---|---|---|---|
Operating weight | kg | 25500 | |
Standard bucket capacity | m³ | 1.05~1.25 | |
Engine | Engine Model | / | ISUZU CC-6BG1TRP |
Direct injection | / | √ | |
Four strokes | / | √ | |
Water cooling | / | √ | |
Turbo charged | / | √ | |
Air to air intercooler | / | √ | |
No. of cylinders | / | 6 | |
Rated power/speed | kw/rpm | 128.5/2100 | |
Max. torque/speed | N.m | 637/1800 | |
Displacement | L | 6.494 | |
The main performance | Travel speed | km/h | 5.9/4.0 |
Swing speed | r/min | 11.3 | |
Max. gradeability | / | ≤35 | |
Ground pressure | kPa | 50.1 | |
Max.Bucket digging force | kN | 161 | |
Max.arm crowd force | kN | 125 | |
Max.traction force | kN | 194 | |
Hydraulic system | Main pump | / | 2 Plunger pump |
Rate flow of main pump | L/min | 2×256 | |
Max pressure of prime relief valve | MPa | 34.3/37 | |
Max pressure of travel system | MPa | 34.3 | |
Max pressure of swing system | MPa | 28 | |
Max pressure of pilot system | MPa | 3.9 | |
Oil capacity | Fuel tank capacity | L | 400 |
Hydraulic tank capacity | L | 240 | |
Engine lubrication | L | 25 | |
Overall dimensions | A Overall length | mm | 10160 |
B Overall width | mm | 3190 | |
C Overall height | mm | 3100 | |
D Overall width of upperstructure | mm | 2830 | |
E Track length | mm | 4640 | |
F Overall width of undercarriage | mm | 3190 | |
G Crawer width | mm | 600 | |
H Track length on ground | mm | 3842 | |
I Crawer gauge | mm | 2590 | |
J Clearance under counter weight | mm | 1100 | |
K Ground clearance | mm | 485 | |
L Min.tail swing radius | mm | 2985 | |
Working range | A Max. digging height | mm | 9662 |
B Max. dumping height | mm | 6810 | |
C Max. digging depth | mm | 6895 | |
D 8inch horizonal digging depth | mm | 6750 | |
E Max. vertical wall digging depth | mm | 5480 | |
F Max. digging reach | mm | 10240 | |
G Min. swing radius | mm | 3850 | |
Angle of arm deflection | Degree |
Advantages:
