Product Details:
Payment & Shipping Terms:
|
Product Name: | Wheel Loader | Rated Load: | 5t |
---|---|---|---|
Bucket Capacity: | 3m³ | Operating Weight: | 17.2t |
Material: | Steel | ||
High Light: | earth moving equipment,construction heavy equipment |

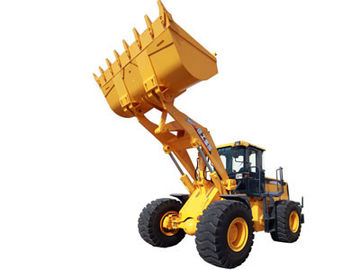

Strong Structure LW500KN Wheel Loader With Long Service Life, Original Wheel Loader Spare Parts for Sale
Technical Parameter:
Item |
Parameter |
Unit |
|
Rated load |
5 |
t |
|
Bucket capacity |
3 |
m3 |
|
Dumping height |
3090 |
mm |
|
Dumping distance |
1130 |
mm |
|
Max.drawing force |
170 |
kN |
|
Max. traction |
165 |
kN |
|
Dimension |
8185×3000×3465 |
mm |
|
Operating weight |
17200 |
kg |
|
Boom lifting time |
≤6.0 |
≤6.0 |
|
Total time of three devices |
11 |
s |
|
Wheelbase |
3300 |
s |
|
Min. turning radius (bucket outer) |
6910 |
mm |
|
Rated power |
162 |
kW |
|
Travel speed |
I Gear (Forward/Backward) |
0-11.5/16.5 |
km/h |
II Gear (Forward) |
0-38 |
km/h |
|
Long boom parameter |
|||
Item |
Standard bucket |
Coal bucket |
|
Bucket capacity |
2.7m³ |
3.5 |
|
Rated load |
4.5t |
4.0t |
|
Dumping height |
3710mm |
3550mm |
|
Dumping distance |
1180mm |
1300mm |
|
Dimension |
8870×3000×3350 |
8870×3000×3465 |
|
Attachment parameter |
|||
Attachment parameter—snow plow |
|||
Pushing snow width |
3800 |
mm |
|
Horizontal rotary angle |
±38 |
° |
|
Vibrating angle |
±6 |
° |
|
Obstacle crossing height |
0~150 |
mm |
|
Rated power |
162 |
KW |
|
Attachment parameter-clamp |
|||
Dumping height |
3241 |
|
|
Dumping distance |
1902 |
|
|
Min. circle diameter and max. opening |
|
|
|
Basic model |
¢800×1990 |
|
|
IV model |
¢430×2000 |
|
|
Attachment parameter-Sliding fork |
|||
Fork folding angle |
20 |
° |
|
Attachment length |
2053 |
mm |
|
Attachment width |
2516 |
mm |
|
Attachment height |
1200 |
mm |
|
Fork teeth length |
1200 |
mm |
|
Attachment parameter-Side dumping |
|||
Bucket width |
3000 |
mm |
|
Dimension |
8310×3040×3465 |
mm |
|
Dumping height(straight/side) dumping |
2960/4125 |
mm |
|
Dumping distance(straight/side)dumping |
1272/105 |
mm |
|
Lifting height(straight/side) dumping |
5407/6830 |
mm |

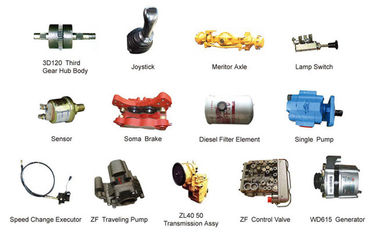

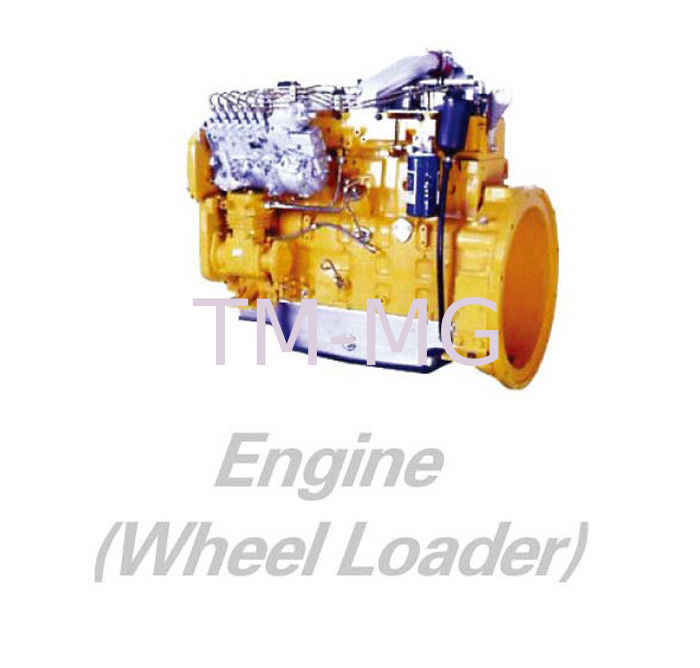

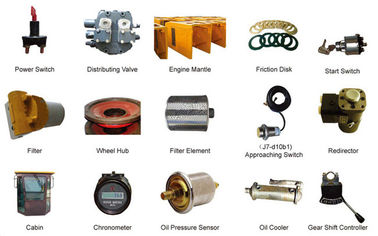

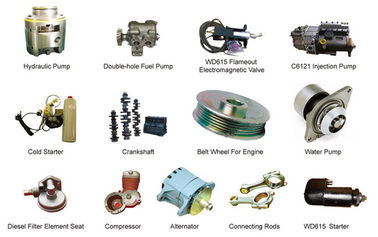

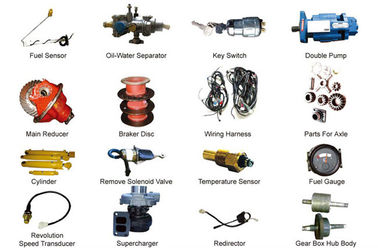

Original Spare Parts:
We can supply with all of original spare parts for XCMG wheel loader ZL50GN LW300KN LW300FN LW500KN LW500FN etc. Such like oil filter, air filter, transmission, front axle, shaft gear from transmission, working pump, steering pump,steering unit, selective valve, multi-way valve, bucket teeth, tyre,gasket, etc.
