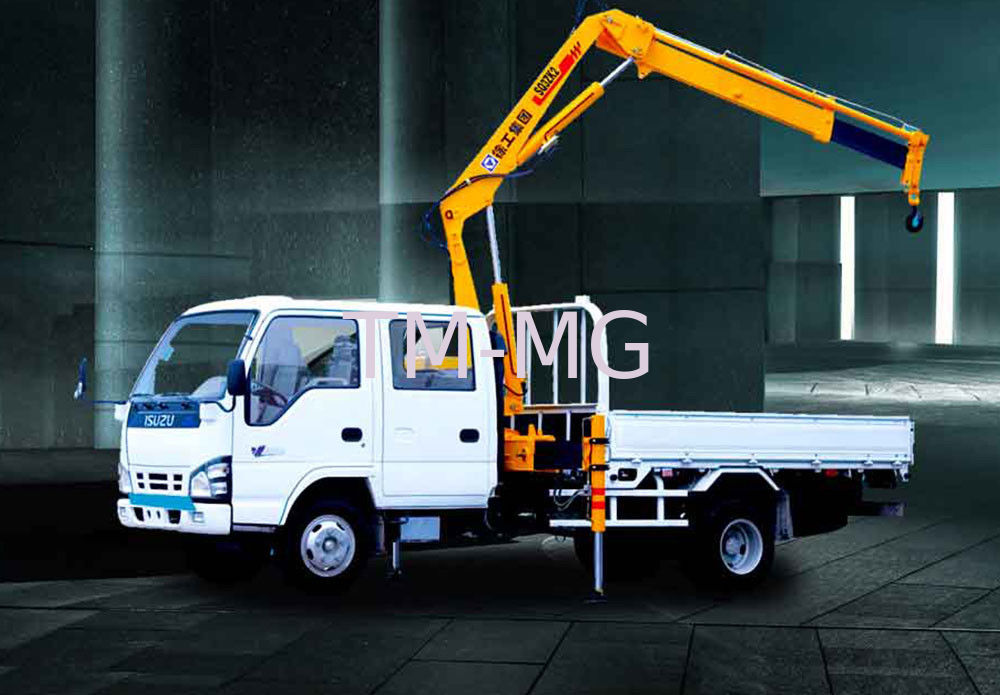

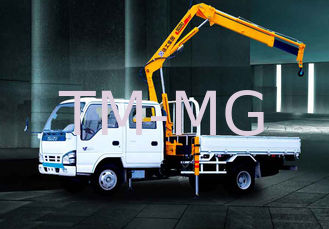

XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2

XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2
XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2

Large Image :  XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ1ZK2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Boom Type: Knuckle Boom
Max. Lifting Capacity: 1400 Kg Max. Lifting Moment: 2 T.m
Max. Lifting Height: 5.5m Crane Weight: 450 Kg
Oil Tank Capacity: 20 L
High Light:

lorry mounted crane

,

cargo crane truck

Durable XCMG Knuckle Boom Truck Crane 1400kg



Quick Details:



Name: Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane

Max. Lifting Capacity: 1400 kg

Max. Lifting Moment: 2 t.m

Max. Oil Flow of Hydraulic System: 16 L/min

Max. Lifting height: 5.5meters

Brand: XCMG

Crane Weight: 450 kg

Oil Tank Capacity: 20 L





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective..

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ1ZK2 is used for lifting 1.5tons, moment is 2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­



Specifications:



Model SQ1ZK2 Unit
Max Lifting Moment 2 t.m
Max Lifting Capacity 1500 kg
Recommend Power Needed At Recommend Oil Flow 7 kw
Max Oil Flow of Hydraulic System 16 L/min
Rated Pressure Of Hydraulic System 18 MPa
Oil Tank Capacity 20 L
Rotation Angle 320 °
Crane Weight 540 kg
Installation Space 550 mm
Choice of Chassis HFC1065KRT; NKR77PLLWCJAY



SQ1ZK2 Lifting capability diagram
Working radius (m) 1.33 2.25 3.2
Lifting capacity (kg) 1500 850 550





Dimension drawing





XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 0





XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 1



Optional parts:





1.Remote control equipment





XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 2



2.Moment limited valve



XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 3



3.High seat on column



XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 4



4.JIB



XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 5



5.Assisatant stabilizer leg



XCMG Knuckle Boom Truck Crane 1400kg SQ1ZK2 6



stabilizer leg spread
Fixed 2179mm
Single extension 2256-3556mm
Double extension 2212-4752mm





Competitive Advantage:



1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.
