Product Details:
Payment & Shipping Terms:
|
| Model: | XZJ5063JGK | Chassis: | NKR77LLLWCJAY |
|---|---|---|---|
| Engine: | 4KH1-TC | Max. Work Height: | 17.4m |
| High Light: | rescue tow truck,articulating boom crane |
||

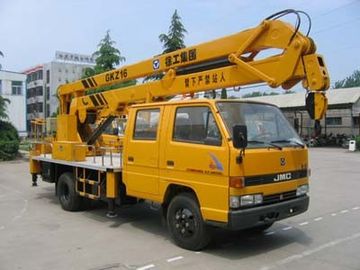

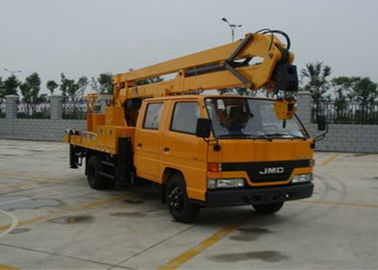

17m Aerial work platform XZJ5063JGK
Specifications:
1:Brand name:XCMG
2:High strength
3:Long service life
4:Convenient maintenance
Parameter:
|
Vehicle Model |
XZJ5063JGK |
|---|---|
| Max Operating Height | 17.4m |
| Max Operating Radius | 8.3m |
| Rated Load of Platform | 200Kg |
| Slewing Angle | ±360° |
| Max Operating Radius on Maximum Operating Height | 2.7m |
| Max Operating Height on Maximum Operating Radius | 9.7m |
| Max Lifting Capacity | 2000Kg |
| Max Lifting Height | 9.3m |
| Dimension in Driving( L × W × H) | 7660×2000×3050(mm) |
| Chassis Model | NKR77LLLWCJAY |
| Engine Model | 4KH1-TC |
| Engine Power | 96kw |
| Passengers | 2+3 |
17m Aerial work platform XZJ5063JGK
Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle
Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance
The internally mounted leveling system ensures that the work platform always keeps level
The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability
The synchronic telescopic arm structure has high work efficiency and wide work range.
The multifunction integrated handle is very convenient, smooth and comfortable to operate.
The PLC control has superior safety performance like automatic amplitude limit and danger alarm function
