Product Details:
Payment & Shipping Terms:
|
| Brand: | XCMG | Product Name: | Wheel Loader |
|---|---|---|---|
| Rated Load: | 5000kg | Bucket Capacity: | 4.5m³ |
| Operating Weight: | 18t | Rated Power: | 162kw |
| High Light: | construction heavy equipment,heavy earth moving machinery |
||
Feasures
1.Fully hydraulic powered steering with flow-amplified system. Pilot operated control for loader hydraulic system, power shift transmission makes convenient and flexible operating.
2.XCMG new-Z-bar linkage, high breakout force, shorter hydraulic cycle time, automatic leveling on any position, and greater productivity.
3.Special quadrate type transmission shaft of construction machinery. Power transmission is more reliability. Integral new luxury cab, excellent sight, safety and reliability, sound insulation, with air conditioner.
4.EG-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.
5.Optimized structure of diesel engine air intake system reduces dust into air filter. Prolonging the durability of engine, conveniencing the service of air filter element.
6.Optimized cooling system, drops overall heat balance temperature.Integral openable hood, made by compound material, reduces noise and vibration, makes convenient and flexible operation and service.
7.Equipped with SHANGHAI or other famous brand diesel engine, electric starting, electric starting, electric stopping, having excellent performance and reliability.

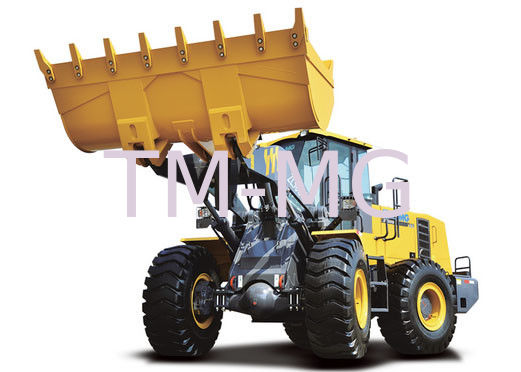

| Specification | XCMG ZL50GN Wheel Loader |
| L*W*H | 8110*3000*3460mm |
| Rated load | 5t |
| Operating weight | 18t |
| Max.tractive force | 145KN |
| Static side rolling-off load | |
| Min.ground clearance | |
| Steering angle | 35 |
| Min.turning radius | 6400MM |
| Speed | |
| 1st(F) | 0-11.5km/h |
| 2nd(F) | 0-37km/h |
| Reverse1st,2nd | 0-16.5km/h |
| F3/ R3 | |
| F4/ R4 | |
| Hoisting height | |
| Tractive height | |
| Engine | |
| Engine model | WD 615.67G3-31A(6CT8.3-C) |
| Rated power/speed | 162kw/2200r/min |
| Cylinder/bore/stroke | |
| Standard Bucket capacity | 3 cbm |
| Optional Bucket capacity | |
| Max.brake-out force | 170KN |
| Raising capacity | |
| Total cycling time | <11s |
| Dumping reach | 3090mm |
| Dumping distance | 1130mm |
| Tools for optins | |
| Tires | 23.5-25 |
