| Product Name: | Telehandler | Overall Dimensions: | 4995*2470*2250mm |
|---|---|---|---|
| Operation Weight: | 7840kg | Fork Length: | 1200mm |
| Power Souce: | Diesel Engine | Condition:: | New |
| Highlight: | extended boom forklift,telescopic forklift truck |
||

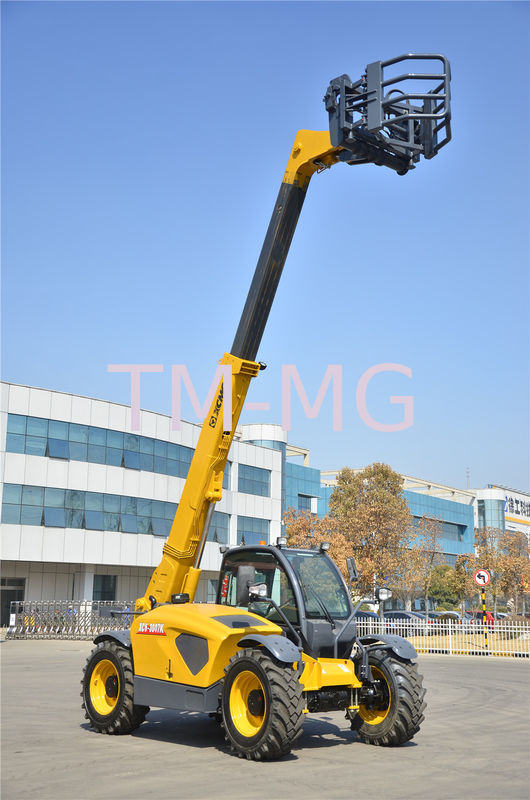

3.5 Ton mini telescopic forklift Telescopic Handler XC6-3007
Telehandlers are designed to offer optimal productivity, reliability and enhanced performance in heavy-duty environments
XC6-3507 Telescopic is a versatile lifting handling equipment, set the stability and high efficiency in one, for a variety of material handling environments. The compact body models, flexible operation, sensitive lift, high net truck load indicators, fork shipped accurate.
Feature:
Overall Dimensions: 4995*2470*2250mm
Operation weight: 7850kg
Fork Length:7150mm
Safe operation and easy maintenance
Confortable drive and easy operation:
| Description | Unit | Specifications |
| Overall dimensions(L*W*H) | mm | 6290×2450×2725 |
| min.ground clearance | mm | 450 |
| Wheel base | mm | 3250 |
| Tread | mm | 1977 |
| Model | WEICHAI Engine | |
| Rated power | kw | 74.5 |
| Rated speed | r/min | 2200 |
| displacement | L | 4.4 |
| number of cylinder | 4 | |
| Max Grade Ability | % | 30 |
| Max. speed | km/h | 35 |
| Operating weight | t | 7.85 |
| Maximum lift capacity | k g | 3500 |
| Lift height | m | 7.15 |
| Reach at maximum lift height | m | 1.33 |
| Maximum forward reach | m |
3.83
|
The Main Parameters
| XC6-3507 | XC6-3514 | XC6-4517 | Unit | ||
|---|---|---|---|---|---|
| Machine Weight | 7850 | 10500 | 13500 | kg | |
| Engine Power Rate | 70(Deutz) | 70(Deutz) | 82(Cummins) | kW | |
| Max. Payload | 3500 | 3500 | 4500 | Kg | |
| Payload Under Max. Extension | 1250 | 635 | 490 | Kg | |
| Max Lifting Height | 7150 | 13700 | 16700 | mm | |
| Max. Outreach | 3600 | 9460 | 12600 | mm | |
| Load Center Distance | 600 | mm | |||
| Swing Angle | -3~65 | -4~73 | -4~73 | º | |
| Fork Decline Angle | Forwards | 90 | º | ||
| Backwards | 17.5 | 18 | 18 | º | |
| Max. Traction Force | »55 | »48 | »73 | kN | |
| Gradeability | »40 | »28 | »33 | º | |
| Max. Travel Speed | 30 | 28 | 35 | km/h | |
| Turing Radius | «3880 | «4230 | «4860 | mm | |
| Brake Distance | «8 | «6 | «10 | m | |
| Total Length | 4995 | 6290 | 6890 | mm |
|
| Total Height | 2470 | 2600 | 2815 | ||
| Total Width | 2250 | 2500 | 2500 | ||
| Wheelbase | 2985 | 3250 | 3900 | ||
| Tread | 1840 | 1970 | 2060 | ||
| Fork Length | 1200 | ||||
1. With a new ergonomic cab and the overall open-style hood, stronger and more beautiful.
2. Adopt international famous brand engine, strong power; import Telescopic dedicated bridge box, smooth and reliable transmission.
3. International top full hydraulic wet brake systems, brake smoothly and reliably, to ensure traffic safety.
4. Optional torque limiting system to meet the demand for the use of extreme conditions, to ensure the machine safety.
5. Configurable fork, high-altitude platform, bucket, sandwich and other equipment, to meet the needs of individual users.
6. Speeds of up to 30km / h, mobile and flexible.
7. China Telescopic leader.
8. China Telescopic industry standard-setter.
XC6
Comfort drive and easy operation
Luxury and comfortable cabin with soundproof, thermal insulation, vibration and open visionary
Ergonomic joysticks and dashboard layout, suspension seat operator's easy operations.
International brand air-condintioner to ensure proper temperature inside the cabin
Exterme Efficient And Performance
Special CARRARO full electrical-control transmissions with compact structure and high transmission effiency.
Electrohydrulic proportional control working system for accurate operations.
Auto flow compensation forks during boom swing process to ensure lifting stability and safety at a high position.
Competitive Advantage:
1, Single cylinder synchronization guy cable technology make work efficiency more higher than before
2, Advanced development means make sure that the design is very reliable
3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.
4, Compact Hinge point design take up smaller space.
5, The work is more safety after fitted with overwind alarm equipment
6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system
7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling
8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation
9, Anti-slewing implulse equipment that make vehicle running safely.
F A Q
Q: Are you a trading company?
A: No, we have our own factory, factory+trading company.
Q: How is your warranty?
A: We provide 12 months warranty for our products.
Q:If I don’t know how to install, what should I do?
A: Don’t worry about that, we have professional engineers help you.
Q: How is your after-sale service?
A: 24 hours and 7days service.
