Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation

I'm Online Chat Now
Certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
Your quality is trusty, we are pleased to choose this reliable partner

—— Minas Gerais

Your good service and prompt reactions are greatly appreciated, your porducts are also highly impressed me by it's good quality and competitive price.

—— S.Sahota

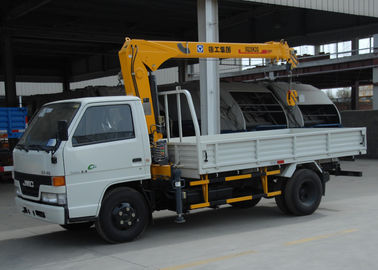

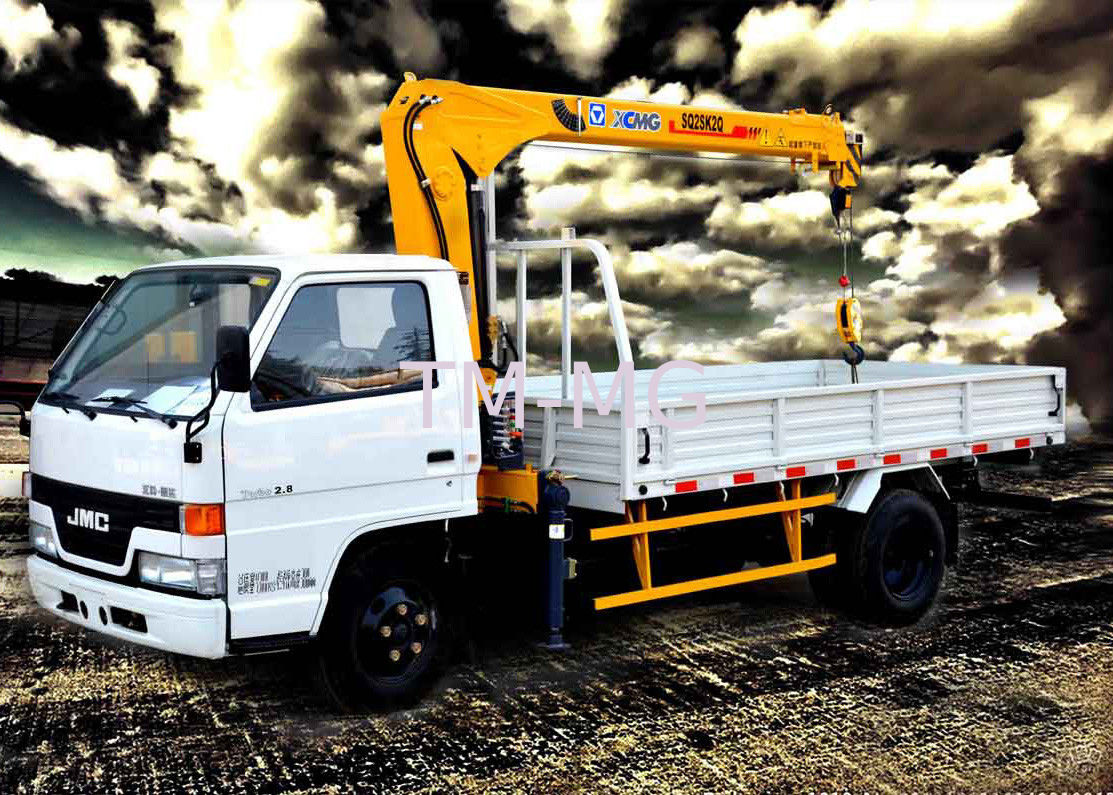

Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation

Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation
Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation

Large Image :  Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ2SK2Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 1000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Telescopic Boom Crane
Max. Lifting Capacity: 2.1 Ton Max. Lifting Moment: 4.2 T.M
Max. Lifting Height: 10m Crane Weight: 818 Kg
Oil Tank Capacity: 25L Rotation Angle: All Rotation
High Light:

Truck Loading Crane

,

Lorry-Mounted Crane



Durable Mini XCMG Telescopic Truck With Crane, Safety Transportation





Quick Details:



Brand: XCMG                                                                          Name: Telescopic boom crane

Max. Lifting Capacity: 2.1 ton                                                  Max. Lifting Moment: 4.2 T.M

Max. Oil Flow of Hydraulic System: 20 L/min                           Max. Lifting height: 10meters

Crane Weight: 818 kg                                                             Oil Tank Capacity: 25 L





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ2SK2Q is lifting capacity is 2.1tons, moment is 4.2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­





Specifications:



Model

SQ2SK2Q

Unit

Max. Lifting Capacity

2100

kg

Max. Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max. Oil Flow of Hydraulic System

20

L/min

Max. Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation

Crane Weight

818

kg

Installation Space

850

mm

Choice of Chassis

HFC1065KRT;

JX1050TGB23;

JX1060TSG23;

EQ1060GJ20D3;

EQ1092FJ;

EQ1092FJ1;

EQ1060TJ20D3



SQ2SK1Q Lifting capability diagram



Working radius (m)

2.10

2.50

3.00

Lifting capacity (kg)

2100

1600

1000





Dimension drawing


 Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 0






Optional parts:



1. Moment limited device
Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 1

  1. Remote control equipment
    Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 2
  2. Anti-overwind magnet valve
     Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 3
  3. High seat on column
    Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 4
  4. Work light
    Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 5
  5. Assisatant stabilizer leg
    Durable Mini XCMG Telescopic Truck With Crane , Safety Transportation 6



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm






Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity

4, Compact Hinge point design take up smaller space

5, The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.
