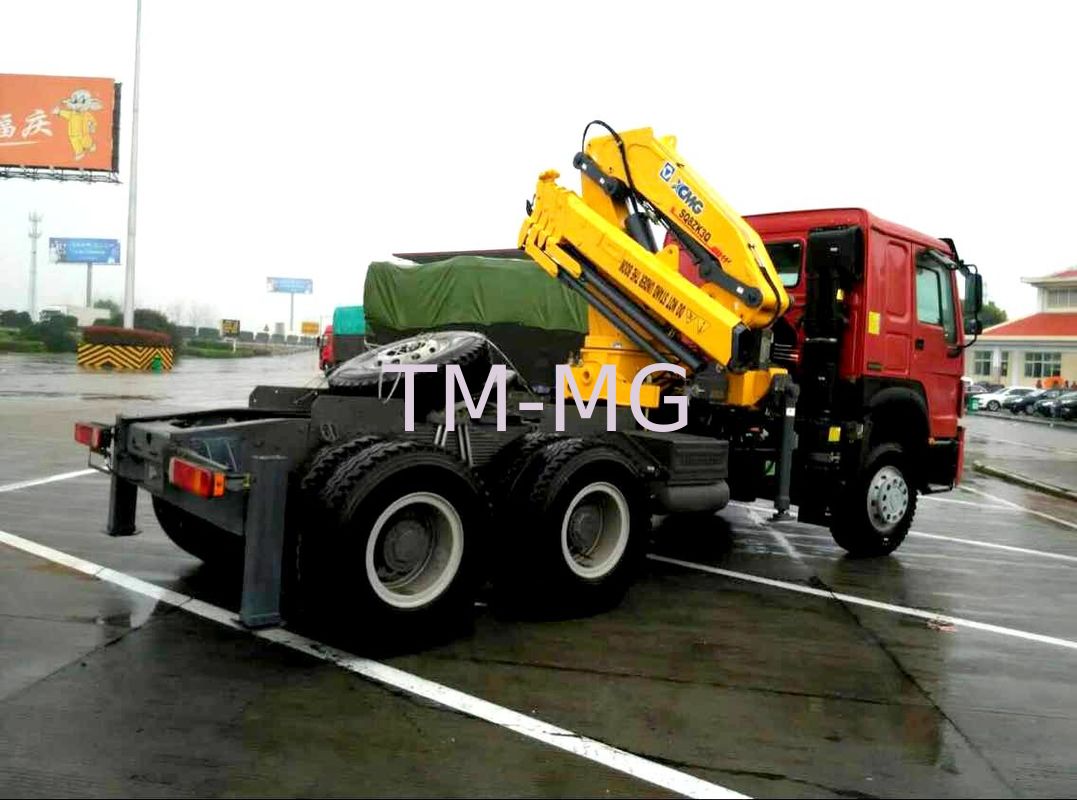

14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things

14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things
14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things

Large Image :  14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ14ZK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Knuckle Boom Crane
Max. Lifting Capacity: 14 Ton Max. Lifting Moment: 35 T.m
Max. Lifting Height: 14m Crane Weight: 4800 Kg
High Light:

lorry mounted crane

,

cargo crane truck

14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things





Quick Details:



Name: Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane

Max. Lifting Capacity: 14 ton

Max. Lifting Moment: 35 t.m

Max. Oil Flow of Hydraulic System: 63 L/min

Max. Lifting height: 14meters

Brand: XCMG

Crane Weight: 4800 kg

Oil Tank Capacity: 220 L





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ14ZK4Q is lifting capacity is 14tons, moment is 35T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­



Specifications:



Model SQ14ZK4Q Unit
Max Lifting Moment 35 t.m
Max Lifting Capacity 14000 kg
Recommend Power Needed At Recommend Oil Flow 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Rated Pressure Of Hydraulic System 26 MPa
Oil Tank Capacity 220 L
Rotation Angle (360°) All Rotation .
Crane Weight 4468 kg
Installation Space 1240 mm
Choice of Chassis BJ1317VNPJJ-S5; NXG1310D3ZEX



SQ14ZK4Q Lifting capability diagram
Working radius(m) 2.5 3.73 5.58 7.48 9.45 11.4
Lifting capacity(kg) 14000 9120 5720 4100 3140 2530





Dimension Drawing:





14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 0

14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 1





Optional parts:





1.Remote control equipment





14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 2



2.Moment limited valve



14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 3



3.High seat on column



14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 4



4.JIB



14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 5



5.Assisatant stabilizer leg



14 Ton Knuckle Boom Truck Crane For Lifting Heavy Things 6



Stabilizer leg Spread
Fixed 2179mm
Single extension 2256-3556mm
Double extension 2212-4752mm





Competitive Advantage:



1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.
