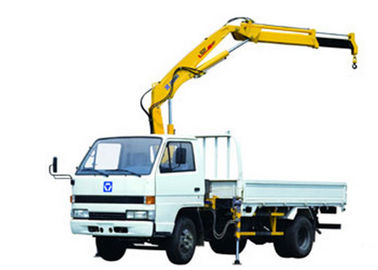

XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales

XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales
XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales

Large Image :  XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ1ZK2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Boom Type: Knuckle Boom
Max. Lifting Capacity: 1400 Kg Max. Lifting Moment: 2 T.m
Max. Lifting Height: 5.5m Crane Weight: 450 Kg
Rotation Angle: 320° Installation Space: 550mm
Oil Tank Capacity: 20L
High Light:

knuckle boom crane

,

knuckle boom truck mounted crane



Durable XCMG Knuckle Boom Truck Mounted Crane, 1400kg Wire Rope Raise





Quick Details:



Name: Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane

Max. Lifting Capacity: 1400 kg

Max. Lifting Moment: 2 t.m

Max. Oil Flow of Hydraulic System: 16 L/min

Max. Lifting height: 5.5meters

Brand: XCMG

Crane Weight: 450 kg

Oil Tank Capacity: 20 L





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective..

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ1ZK2 is used for lifting 1.5tons, moment is 2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­



Specifications:



Model

SQ1ZK2

Unit

Max Lifting Moment

2

t.m

Max Lifting Capacity

1500

kg

Recommend Power Needed At Recommend Oil Flow

7

kw

Max Oil Flow of Hydraulic System

16

L/min

Rated Pressure Of Hydraulic System

18

MPa

Oil Tank Capacity

20

L

Rotation Angle

320

°

Crane Weight

540

kg

Installation Space

550

mm

Choice of Chassis

HFC1065KRT; NKR77PLLWCJAY



SQ1ZK2  Lifting capability diagram

Working radius (m)

1.33

2.25

3.2

Lifting capacity (kg)

1500

850

550





Dimension drawing





XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 0





  XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 1



Optional parts:





 1.Remote control equipment





XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 2



2.Moment limited valve



XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 3



3.High seat on column



XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 4



4.JIB



XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 5



5.Assisatant stabilizer leg



XCMG SQ1ZK2 Knuckle Boom Truck Mounted Crane , 1400kg Wire Rope Raise for Sales 6



stabilizer leg

spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm





Competitive Advantage:



1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling
