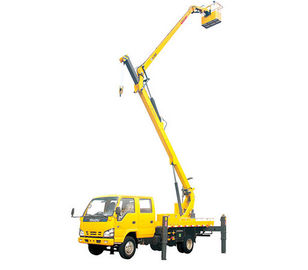

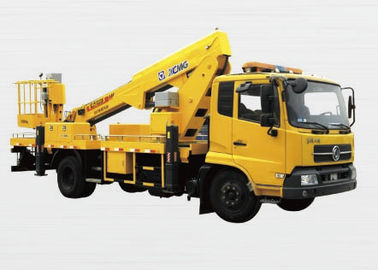

XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms

XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms
XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms

Large Image :  XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: XZJ5068JGK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Product Name: Truck Mounted Boom Lift Max. Operating Height: 21.5m
Max. Operating Radius: 11 M Rated Lood: 200kg
Max.lifting Capacity: 2000kg Chassis: DF1120B7
High Light:

road wrecker truck

,

articulating boom crane


XCMG Rotary Platform Boom Lift Truck, Three Telescopic Arms


Quick Details:

Name: truck mounted boom lift, truck mounted aerial lift, bucket truck lift
Max. Operating Height: 21.5m
Max. Operating Radius: 11 m
Rated Lood: 200kg
Dimension: 8890x2480x3585(mm)
Power of Engine: 103 kw
Passengers: 3 persons


Description:

XCMG Equipment has a variety of Truck Mounted Aerial Work Platforms ranging in height from 14 to 32 meter-with horizontal reaches up to 18 meters. These lifts are amongst the largest of their kind and are valuable tools for many high reach needs, such as construction needs and building maintenance. XCMG Truck Mounted lifts are rented and manned with two operators. They provide mobility for jobs that must move around to different locations and they provide stabilization for job locations with rugged and uneven work surfaces. Most of all, Truck Mounted Lifts save you time and money and provide you with a safe, reliable option for any project that it demands.


Applications:

­Often referred to as “knuckle booms”, articulating boom lifts are used for reaching up and over machinery, equipment and other obstacles mounted on floors.


Specifications:


Max Operating Height

21.5m

Max Operating Radius

11m

Rated Lood

200kg

Slewing Angle

±360° continuing

Platform Slewing Angle

±90°

Max Operating Radius Maximum Operating Height

4.1m

Max Operating Height Maximum Operating Radius

11.4m

Dimension in Driving(L*W*H)

8890x2480x3585(mm)

Chassis

DF1120B7

Engine

EQH140-30

Power of Engine

103kw

Passengers

3 persons



Competitive Advantage:

1. Proportioning valve and proportion handle are purchased from HAWE, Germany
2. CAN BUS plus manual control panel on rotary platform provide a stepless speed regulating, outstanding control experience.
3. Both the rotary platform and the working basket have the control panel and control the throttle and the engine on/off.
4. Combine auto leveling system include equalizing lever and synchronous cylinder to insure the working basket always level.
5. The 4 outriggers can be controlled separately on horizontal and vertical way.
6. Interlock, soft leg protection functions can ensure the working security
7. Boom cannot slew if the horizontal leg not in right place, but can up and down, both ensure security and improve the efficiency.
8. Equipped with backup pump for emergency
9. Electronic timer record the working time for maintaining.
10. No range limit, all range operate.
11. Both the rotary platform and the working basket can rotate.
12. The three arms, three telescopic arms can expand synchronously.


XCMG Rotary Platform Boom Lift Truck , Three Telescopic Arms 0
