Product Details:
Payment & Shipping Terms:
|
| Model: | XZJ5250JQJ14 | Drive Type: | Hydraulic |
|---|---|---|---|
| Main Power: | Chassis PTO | Standby Power: | Honda Gasoline Engine |
| High Light: | road wrecker truck,articulating boom crane |
||
Main boom span width 2.8M
Rated load of platform 200kg
Chassis model DFL1250A9
Underbridge horiziontal working radius 0-13.8M

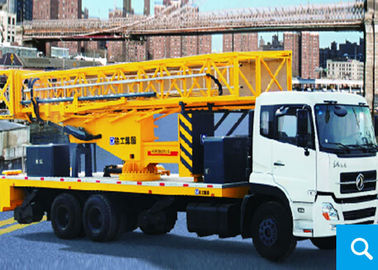

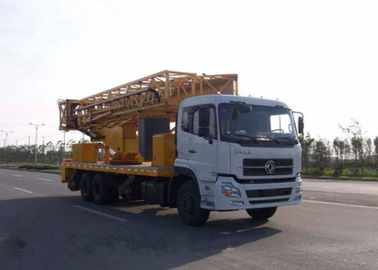

XCMG aerial work platform bridge construction equipments XZJ5250JQJ14
Slewing structure: the cylinder 90° automatic limit function ensures safe and reliable movement.
- The vertical luffing mechanism can make the boom vertical to the bridge side; the wheeled bracket is easy to extend/withdraw the arm and limit the position of the structure
- Large drift diameter slewing structure; the light ladder is very convenient for the staff to get on/off.
- The imported telescopic motor features stable operation and long life.
- The travel outrigger improves safety and stability at work and also improves work efficiency. And it can travel under hydraulic drive.
- The imported valve ensures the stability and reliability of the hydraulic system.
- The standby Honda engine system ensures that the arm will return when the main power fails.
- The fixed counterweight does not overstep the machine body during operation and does not occupy other lanes, so it does not hinder the normal travel of other vehicles
| Model | XZJ5250JQJ14 |
| Overall length of horizontal work platform | 14500mm |
| Valid length of horizontal work platform | 13600mm |
| Distance over the sidewalk | 2200mm |
| Height over the guardrail | 2100mm |
| Max. load of the work platform | 600kg |
| Max. load of the front end of the telescopic arm | 300kg |
| Thickness of the box beam | 6000mm |
| Drive type | Hydraulic |
| Main power | Chassis PTO |
| Standby power | Honda gasoline engine |
| Chassis Model | Dongfeng 25t 6x4 |
| Structure of work platform | Truss type |
| Rotation range I | 0-90° |
| Rotation range II | 0-180° |
| Dimension(mm) | 11470×2480×3960 |
