Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck

Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck
Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck

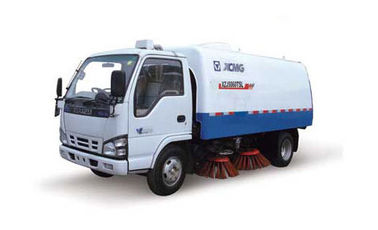

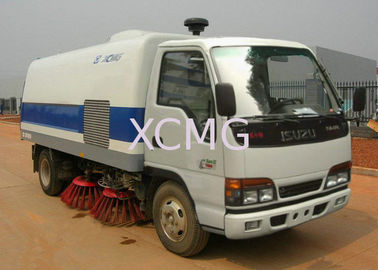

Large Image :  Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: XZJ5060TSL
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-40 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Product Model: XZJ5060TSL Model Of Chassis: NKR77LLLACJAY
Model Of Engine: 4KHl-TC Kerb Mass: 4990kg
Maximum Width Of Sweeping: 3000mm Stainless Steel Trash Box Volume: 5m³
High Light:

road wrecker truck

,

rescue tow truck



Waste collection Special Purpose Vehicles 5m3 Road Sweeper Truck





Specifications:



Customized suction fan provides ample wind force; ensure a smooth and efficient completion of work.



Product model

XZJ5060TSL

Model of chassis

NKR77LLLACJAY

Model of Engine

4KHl-TC

Dimensions

5700*1980*2500mm

Total mass

6436kg

Kerb mass

4990kg

Maximum width of sweeping

3000mm

Stainless steel trash box volume

5m3

Stainless steel water tank volume

1000L

The auxiliary engine models

JX493G3





Description:



Sweeper use a rotary brush to sweep the wasts to a position, and a high pressure fan of the suction system creat a vacuum in the suction cup to draw the wasts into the bin. To control the dust, whole process with water spray. Fuctions of water spray, sweep, suction and automatic unload are provided.





Applications:



Useful for cleaning of urban road, square, airport, stadium, dock and school.





Competitive Advantage:



1. Combined suction and sweeping, wet methods of dust elimination, make sure swept clean and also prevent dust from spread.

2. It is convenient to perform operation in the cab, hand-operated pump installed on the outside of cab is used in case of emergency.

3. Sub-engine drive blower and working equipment which ensure that power can meet the work demands in any case.

4. Automatic clutch was fitted between sub-engine and blower, which ensure that sub-engine can be departed from blower automatically when no-load start and stop. In this way, the operation is sim plified , and the impact against sub-engine are reduced, so the sub-engine work reliability and operation life are raised accordingly .

5. Sweeping tray have the functions of avoiding obstacles and reposition automatically.

6. Rotating speed of sweeping tray can be adjusted according to working condition.

7. Advanced & efficiency air blower have the fine capacity of shock resistance and antirust.

8. Independent water tank can be easy to clean special anticorrosive material greatly in creased antirust abIlity.
