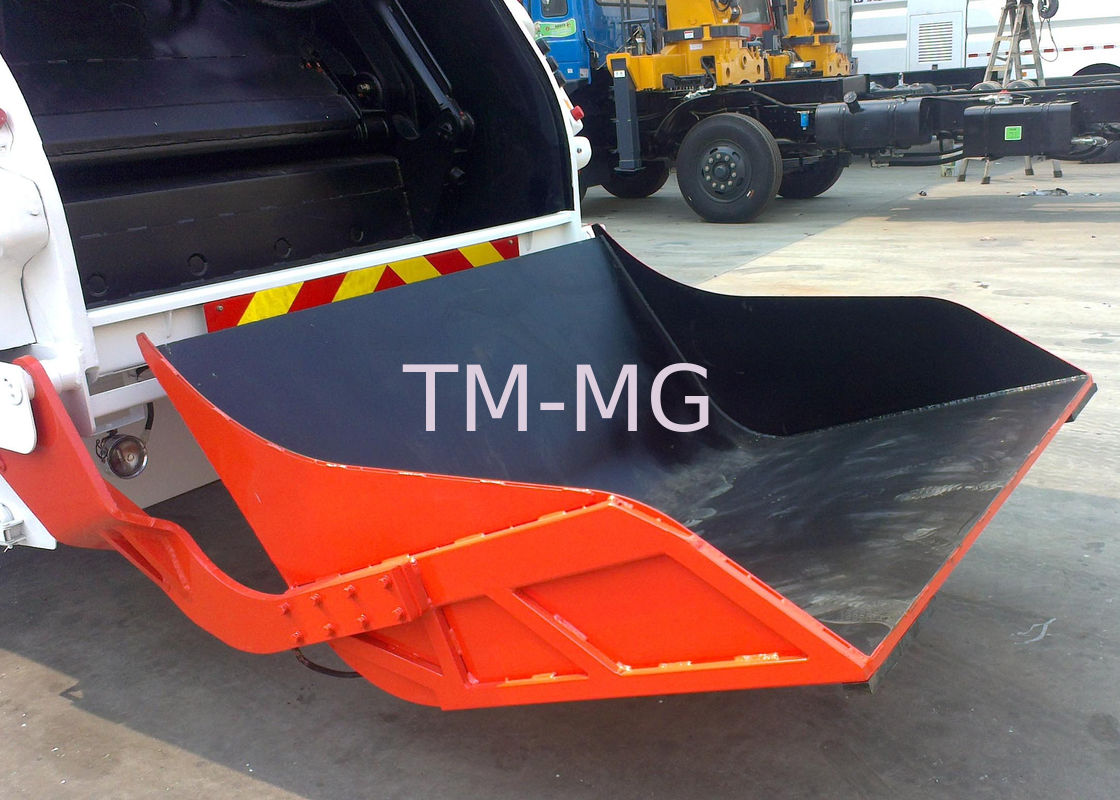

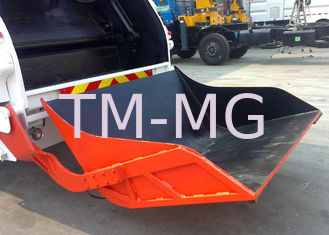

Special Purpose Vehicles Compression Rear Loader Garbage Truck

Special Purpose Vehicles Compression Rear Loader Garbage Truck
Special Purpose Vehicles Compression Rear Loader Garbage Truck

Large Image :  Special Purpose Vehicles Compression Rear Loader Garbage Truck Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE ISO
Model Number: XZJ516IZYS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20-40 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Model: XZJ516IZYS Model: DFL1160BX2
Maximum Total Mass: 16000kg Kerb Mass: 8650kg
Rated Pay Load: 7155kg Carriage Volume: 12m3
Hvdraulic Svstern Pressure: 20Mpa
High Light:

rescue tow truck

,

street sweeper truck


Special Purpose Vehicles Compression Rear Loader Garbage Truck


  1. Name: garbage collection truck, garbage compactor truck, rear loading garbage truck, rear load garbage truck
  2. Maximum total mass: 16000kg
  3. Carriage volume: 12000L
  4. Rated pay load: 7155kg
  5. Garbage bucket volume: 1400L
  6. Application: city garbage collection, refuse and other compressible refuse.
  7. Feature: sealed container, hydraulic system and operating system



Description:

Rear loading detachable container include sealed container, hydraulic system and operating system. The whole container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency.


Applications:

Rear loading detachable container are special for collecting the urban domestic refuse and other compressible refuse.
­

Specifications:


Vehicle Model

XZJ516IZYS

Chassis model

DFL1160BX2

Maximum total mass

16000kg

Kerb mass

8650kg

Rated pay load

7155kg

Carriage volume

12m3

Garbage bucket volume

1.4m3

width of feeding mouth

1696rmn

Hvdraulic svstern pressure

20Mpa

Outline dimensions

8385*2470*3015mm

Wheelbase

4500mm

Time of compression

16-18s

Unload garbage time

≤35s



Competitive Advantage:


  1. The key units of hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts.
  2. Advanced electric controlled system adopts PLC (Programmable Logic Controller) integrated controls, mechatronics-hydraulics-integrated controls, reaching high automatization.
  3. Pushplate valve are equipped with balance valve which can  made  pushplate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage.
  4. Beautiful streamline appearance, upper vehicle adopts high strength anti-rust steel plate which can prolong the service life of vehicle.
  5.  Convenient control system   It is convenient to operate, job control boxes are separately installed in the cab and vehicle end. The control box installed in the cab can control the operation of dumping garbage and selective mode( such as auto-matic or hand-operated) ; the control box installed on the vehicle end can control the operation of stuff mechanism and overturn bucket mechanism.
  6. Throttle control can be realized full-automatic control by control electric system,which meet the power needs of operation of compressing and dumping garbage; in other working condition, engine get into idle state automatically  that can reduce power wasting and faults rate.
  7. Rearview monitor system of optional is offered, it is very convenient to perform visible load and unload operation in the cab.
  8. Two controls of automatic control and hand-operated control are offered, greatly increased vehicle utilized rate.
  9.  The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety.
  10.  Basket equipment and overturn mechanism are optional, user can select collecting  mecha nism of optional according to the way of collecting garbage.
