Maximum Total Mass: | 16000kg | Rated Pay Load: | 7250kg |
---|---|---|---|
Carriage Volume: | 12.5m3 | Garbage Bucket Volume: | 1.4m³ |
Kerb Mass: | 8600kg | ||
High Light: | road wrecker truck,rescue tow truck |

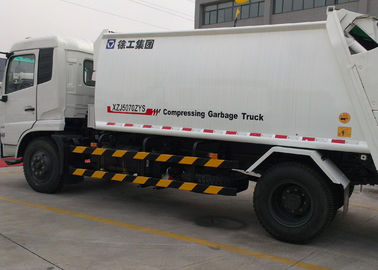

Hydraulic System Garbage Compactor Special Purpose Vehicles, Collection Truck
Description:
Rear loading detachable container include sealed container, hydraulic system and operating system. The whole container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency.
Applications:
Rear loading detachable container are special for collecting the urban domestic refuse and other compressible refuse.
Specifications:
Vehicle Model | XZJ516lZYSA4 |
Chassis model | DFL1160BX4 |
Maximum total mass | 16000kg |
Kerb mass | 8600kg |
Rated pay load | 7250kg |
Carriage volume | 12.5m3 |
Garbage bucket volume | 1.4m3 |
width of feeding mouth | 1696mm |
Hvdraulic svstern pressure | 20Mpa |
Outline dimensions | 8520*2470*2940mm |
Wheelbase | 4500mm |
Time of compression | 16-18s |
unload garbage time | ≤30s |
Competitive Advantage:
