| Product Name: | QUY100 Hydraulic Crawler Crane | Max. Load Moment: | 5500kN-m |
|---|---|---|---|
| Boom Length: | 18～72m | Max. Swing Speed: | 1.4r/min |
| Engine Output Power: | 200kW | Fixed Jib Length: | 12-24m |
| Mean Ground Pressure: | 0.0927MPa | Total Mass: | 114t |
| High Light: | heavy lifting cranes,boom truck crane |
||

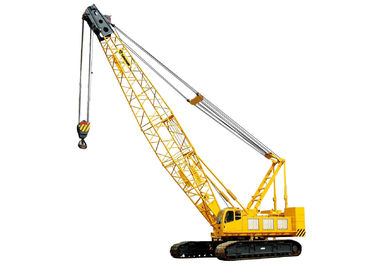

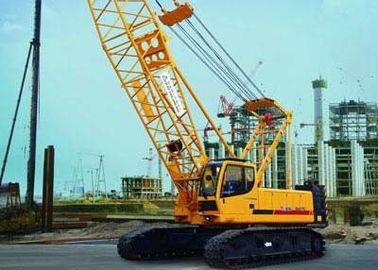

Durable 40 ton Jib 11t Crawler Crane QUY100 With Max. Swing Speed 1.4 r/min
Description:
QUY100 crawler crane is an independent-developed hydraulic drive, full swing and lattice boom crawler
crane, absorbing foreign advanced technology and combining present domestic situations. It features
easy and maneuverable control, smooth vehicle travelling.
Applications:
Crawler crane is mainly used for lifting heavy things and transporting them to other places. crawler cranesmake short work of toughest jobs. They are available in a broad range of lifting capacities for applications
in a wide variety of fields, including heavy-duty foundation work, this product is mainly designed for
engineering projects like subway, bridge, Petrochemical, power station, nuclear power construction
Specification:
|
Item |
Unit |
Parameter |
|
|
Max. lifting capacity |
Boom |
t |
100 |
|
Jib |
t |
11 |
|
|
Max. load moment |
kN.m |
5500 |
|
|
Boom length |
m |
18～72 |
|
|
Boom elevating angle |
° |
0～80° |
|
|
Fixed jib length |
m |
12～24 |
|
|
Fixed jib offset |
|
10°,30° |
|
|
Max. single line hoist speed (at 5th layer with no load) |
m/min |
120 |
|
|
Max. single line elevating speed (at 5th layer with no load) |
m/min |
45 |
|
|
Max. swing speed |
r/min |
1.4 |
|
|
Travel speed |
km/h |
1.1 |
|
|
Min. elevating time |
s |
240 |
|
|
Winch hoist speed(with full load) |
m/min |
4 |
|
|
Max. grade-ability |
|
30% |
|
|
Mean ground pressure |
MPa |
0.0927 |
|
|
Engine output |
kW |
200 |
|
|
Total mass (main hook block,18m boom) |
t |
114 |
|
|
Max. base machine weight for transport |
t |
40.0 |
|
|
Max. base machine dimension for transport (L×W×H) |
m |
9.6×3.3×3.3 |
|
Competitive Advantage:
1, Rexroth swing reducer
Planetary reducer, controllable constant-close disc brake, high reliability, easy for maintenance.
2. Rexroth gear reducer
Built-in gear reducer with small turning radius, high maneuverability and reliability
3. imported logic valve
logic valve can realize precise logical control and simplify the system, easy for maintenance.
4. Imported PAT load moment indicator
LMI can detect working conditions of crawler crane, having the function of protection.
Safe and comfortable ergonomic design
1. Adjustable boom backstop device
When the boom is elevation upwards, the detector board approaches to detecting switch; when reaching
maximum elevating angle, the detector board impacts detecting switch and the switch is off, then warning
signal is sent out and the elevating motion stops so as to avoid dangerous accidents.
2. Hydraulic-controlled winch ratchet lock device
The automatic-controlled winch ratchet lock device ensures safe and reliable boom orientation, easy and
comfortable operation.
3. Comfortable Operator’s Cab
Adjustable damping chair can change seat angle; air-conditioner and roller blinds build comfortable
operation environment
4. It embodies the design idea of putting people first. The brand-new design for whole vehicle layout,
outline, drive’s cab, operator’s cab and control components by using 3 dimensional styling technology
and ergonomic principle makes the operator more comfortable
