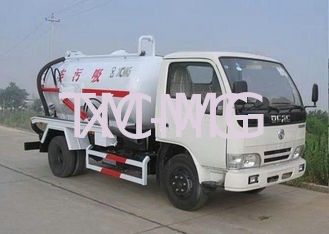

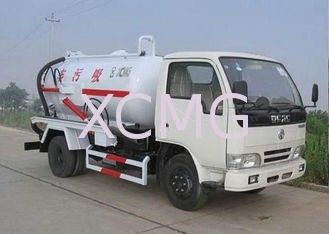

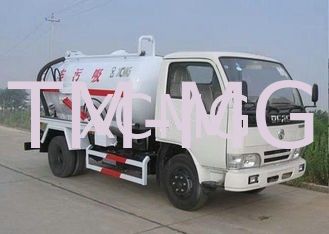

High Efficient Special Purpose Vehicles, Sewage Pump Truck For City Environment Protection
Description:
VAC truck are designed to suction and transport the sewage, septic tank effluent and mud, can also use for irrigation, drainage and suction any kind of noncorrosive mucus liquid without acids and alkalis.
China Septic Vacuum Pump For Truck, China Septic Vacuum Pump
The main function of vacuum sucking sewage truck is to suck and transport the feces, sludge, screes and the other liquid mixing big suspend impurity for Environment Protection in city. Being able to suck and transport and discharge the sediment in the sewer. Especially suitable to suck screes and brick suck as bigger impurity in sewer. The discharge type has two ways, one is pressure discharge, and the other one is self-discharge. It is high efficiency sucking, self-sucking and self-discharge and so on, easily and quickly operates.
Specification:
|
Vehicle Model |
XZJ5120GXW |
|
Chassis model |
DFL1120B1 |
|
Total mass |
12490kg |
|
Curb Weight |
7295kg |
|
Load weight |
5000kg |
|
Effective volume |
6.5L |
|
Dimensions |
7100*2430*3200mm |
|
Wheelbase |
3800mm |
|
Front overhang/rear overhang |
1430/1870nm |
|
Angle of Approach/Departure |
20/18° |
Competitive Advantage:
1. Adopt domestic advanced chassis that is safety and reliable.
2. Tin body that is highly resistant to corrosion after acid pickling and spreading antirust paint.
3. Import vacuum pump is adopted, that have fine lubrication, work reliable, lower oil consumption, with super sucking and draining capacity, make sure is reliability of sucking and draining system.
4. Three functions of vacuum suction, pressure emission and self-flow emission are offered, The design of the pipeline is very novel, it is easy to operate and convenient for installation and maintenance.
5. The structures of control valve, cylinder and pipeline are advanced, the perfo rmances of that are reliable, easy to operate and convenient for maintenance.
6. Tin top is equipped with anti-overflow device controller, as liquid reach to rated range, controller float ball will close vacuum pipeline immediately to prevent liquid entering vacuum pump, thereby disturbing vacuum pump working.
7. Front left of tin is equipped with a level indicator, the liquid level can be showed clear.
