| Model: | GKS28 | Total Length: | 11980mm |
|---|---|---|---|
| Total Width: | 2490/3590mm | Total Height: | 2840mm |
| High Light: | rescue tow truck,road wrecker truck |
||

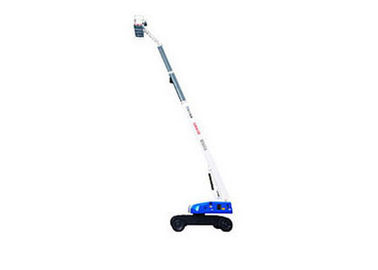

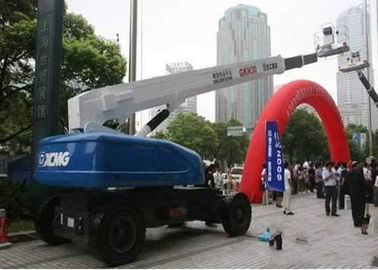

GKS28 Aerial Work Platform (thereafter called Work Platform) consists of specialized carrier and superstructure. The carrier comprises frame, driving mechanism, steering mechanism, outrigger extending system and undercarriage operating system, etc. The superstructure mainly comprises power assembly, turntable, hydraulic system, leveling mechanism, boom telescoping system, the transferring system of hoses and cables as well as electrical system, slewing bearing and slewing mechanism, counterweight and work platform, etc.
|
Item
|
Unit
|
Scale
|
|
Overall length
|
mm
|
11980
|
|
Overall width
|
mm
|
2490
|
|
Overall height
|
mm
|
2840
|
|
Wheel space
|
mm
|
3600
|
|
Track(Front / Rear)
|
mm
|
2230
|
|
Rated working height
|
mm
|
28
|
|
Max. platform height
|
mm
|
26.3
|
|
Max. working radius
|
mm
|
23.8
|
|
Boom elevating range
|
|
-12°～80°
|
|
Boom slewing angle
|
|
360°
|
|
Boom elevating duration
|
s
|
40
|
|
Boom telescoping duration
|
s
|
60
|
|
Boom slewing speed
|
r/min
|
1
|
|
Platform dimension
|
mm
|
1800×900×1150
|
|
Platform slewing angle
|
|
180°
|
