Product Details:
Payment & Shipping Terms:
|
Product Name: | Articulated Boom Lift | Ax. Operating Height: | 18m |
---|---|---|---|
Max. Operating Radius: | 10.6m | Rated Lood: | 200kg |
Engine: | CY4102-C3B | Slewing Angle: | ±360° Continuing |
Platform Slewing Angle: | ±70° | ||
High Light: | rescue tow truck,road wrecker truck |

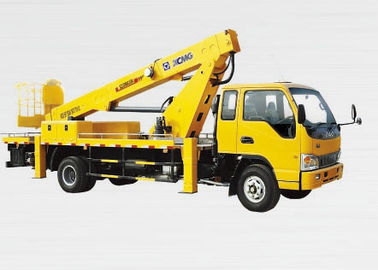

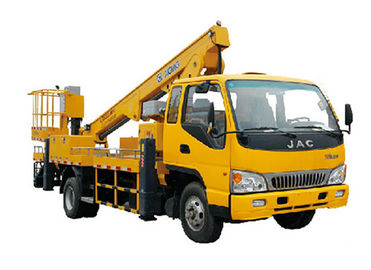

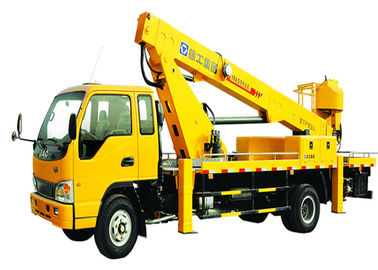

Efficient Reaching Up And Over Machinery Truck Mounted Lift
Quick Details:
Name: XCMG articulated boom lift, truck mounted boom lift, truck mounted aerial lift
Max. Operating Height: 18m
Max. Operating Radius: 10.6m
Rated Lood: 200kg
Dimension: 8610x2200x3280(mm)
Power of Engine: 100 kw
Passengers: 3 persons
Description:
XCMG Equipment has a variety of Truck Mounted Aerial Work Platforms ranging in height from 14 to 32 meter-with horizontal reaches up to 18 meters. These lifts are amongst the largest of their kind and are valuable tools for many high reach needs, such as construction needs and building maintenance. XCMG Truck Mounted lifts are rented and manned with two operators. They provide mobility for jobs that must move around to different locations and they provide stabilization for job locations with rugged and uneven work surfaces. Most of all, Truck Mounted Lifts save you time and money and provide you with a safe, reliable option for any project that it demands.
Applications:
Often referred to as “knuckle booms”, articulating boom lifts are used for reaching up and over machinery, equipment and other obstacles mounted on floors.
Specifications:
Max. Operating Height | 18m |
Max. Operating Radius | 10.6m |
Rated Lood | 200kg |
Slewing Angle | ±360° continuing |
Platform Slewing Angle | ±70° |
Max. Operating Radius Maximum Operating Height | 3.3m |
Max. Operating Height Maximum Operating Radius | 11m |
Dimension in Driving(L*W*H) | 8610x2200x3280(mm) |
Chassis | HFC1082103R1 |
Engine | CY4102-C3B |
Power of Engine | 100kw |
Passengers | 3 persons |
Competitive Advantage:
1. Proportioning valve and proportion handle are purchased from HAWE, Germany
2. CAN BUS plus manual control panel on rotary platform provide a stepless speed regulating, outstanding control experience.
3. Both the rotary platform and the working basket have the control panel and control the throttle and the engine on/off.
4. Combine auto leveling system include equalizing lever and synchronous cylinder to insure the working basket always level.
5. The 4 outriggers can be controlled separately on horizontal and vertical way.
6. Interlock, soft leg protection functions can ensure the working security
7. Boom cannot slew if the horizontal leg not in right place, but can up and down, both ensure security and improve the efficiency.
8. Equipped with backup pump for emergency
9. Electronic timer record the working time for maintaining.
10. No range limit, all range operate.
11. Both the rotary platform and the working basket can rotate.
12. The three arms, three telescopic arms can expand synchronously.
