Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Color: | Yellow |
|---|---|---|---|
| Max. Grade-ability: | 30% | Max. Travel Speed: | 1.2km/h |
| High Light: | mobile hydraulic crane,heavy lifting cranes |
||

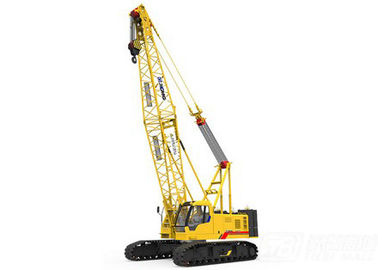

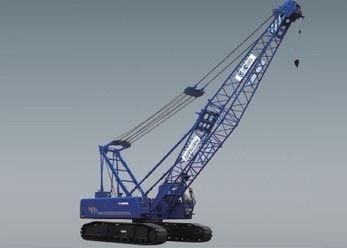

Durable XCMG Hydraulic Crawler Crane Main Boom Length 50m And Fixed Jib Length 18m
Specifications:
|
Item |
Unit |
Parameter |
|
|
Max.rated lifting capacity |
Basic boom |
t |
70 |
|
Fixed jib |
t |
6.5 |
|
|
Max. load moment |
kN-m |
2744 |
|
|
Main boom length |
m |
13-58 |
|
|
Main boom Luffing angle |
° |
30-80 |
|
|
Fixed jib length |
m |
9-18 |
|
|
Winch max. single line speed( no load,at 5th layer) |
m/min |
120 |
|
|
Boom luffing gear max. single line speed( at 1th layer) |
m/min |
57 |
|
|
Max. swing speed |
r/min |
2.4 |
|
|
Max. travel speed |
km/h |
1.2 |
|
|
Max. grade-ability |
% |
30 |
|
|
Mean ground pressure |
MPa |
0.087 |
|
|
Engine output power |
kW |
200 |
|
|
Gross vehicle mass (including main hook block and 13m boom) |
t |
61 |
|
|
Max. weight of single unit in travel configuration |
t |
39 |
|
|
Max. dimension of single unit in travel configuration (L×W×H) |
m |
12.6×3.32×3.23 |
|
Description:
QUY75 crawler crane is an independent-developed hydraulic drive, full swing and lattice boom crawler
crane, absorbing foreign advanced technology and combining present domestic situations. It features
easy and maneuverable control, smooth vehicle travelling.
Applications:
Crawler crane is mainly used for lifting heavy things and transporting them to other places. Crawler cranes
make short work of toughest jobs. They are available in a broad range of lifting capacities for applications
in a wide variety of fields, including heavy-duty foundation work, this product is mainly designed for
engineering projects like subway, bridge, petrochemical, power station, nuclear power construction
Engine:
Shanghai Diesel D6114ZLG1B engine with electronic control, rated output power 200kW, rated speed
1800 rpm., max. out torque 1100N.m, emission in compliance with European Construction Machinery
Stage II.
Competitive Advantage:
1. Rexroth swing reducer
Planetary reducer, controllable constant-close disc brake, high reliability, easy for maintenance.
2. Rexroth gear reducer
Built-in gear reducer with small turning radius, high maneuverability and reliability
3. imported logic valve
logic valve can realize precise logical control and simplify the system, easy for maintenance.
4. Imported PAT load moment indicator
LMI can detect working conditions of crawler crane, having the function of protection.
Safe and comfortable ergonomic design
1. Adjustable boom backstop device
When the boom is elevation upwards, the detector board approaches to detecting switch; when reaching
maximum elevating angle, the detector board impacts detecting switch and the switch is off, then warning
signal is sent out and the elevating motion stops so as to avoid dangerous accidents.
2. Hydraulic-controlled winch ratchet lock device
The automatic-controlled winch ratchet lock device ensures safe and reliable boom orientation, easy and
comfortable operation.
3. Comfortable Operator’s Cab
Adjustable damping chair can change seat angle; air-conditioner and roller blinds build comfortable
operation environment
4. It embodies the design idea of putting people first. The brand-new design for whole vehicle layout,
outline, drive’s cab, operator’s cab and control components by using 3 dimensional styling technology
and ergonomic principle makes the operator more comfortable
