| Product Name: | Crawler Crane | Max. Load Moment: | 1000.8t.m |
|---|---|---|---|
| Boom Length: | 19～82m | Max. Swing Speed: | 1.5r/min |
| Engine Output Power: | 250kW | Fixed Jib Length: | 13～31m |
| Max. Travel Speed: | 1.3km/h | Max. Slewing Speed: | 1.5r/min |
| High Light: | mobile hydraulic crane,heavy lifting cranes |
||
Durable Knuckle Boom Jib Hydraulic Crawler Crane For Lifting 180tons Goods
Principle:

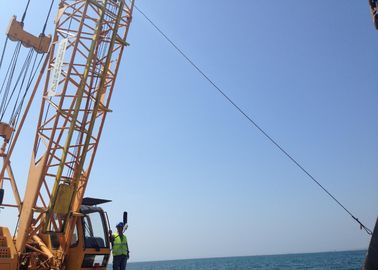

XCMG QUY180 crawler crane is an independent developed hydraulic drive, full swing and lattice boom
crawler crane, absorbing foreign advanced technology and combining present domestic situations.
It features easy and maneuverable control, smooth vehicle travelling.
Scope of application:
Crawler crane is mainly used for lifting heavy things and transporting them to other places. Crawler cranesmake short work of toughest jobs. They are available in a broad range of lifting capacities for applications
in a wide variety of fields, including heavy-duty foundation work, this product is mainly designed for
engineering projects like subway, bridge, petrochemical, power station, nuclear power construction
Advantages:
1, Rexroth swing reducer
Planetary reducer, controllable constant-close disc brake, high reliability, easy for maintenance.
2. Rexroth gear reducer
Built-in gear reducer with small turning radius, high maneuverability and reliability
3. imported logic valve
logic valve can realize precise logical control and simplify the system, easy for maintenance.
4. Imported PAT load moment indicator
LMI can detect working conditions of crawler crane, having the function of protection.
Safe and comfortable ergonomic design
1. Adjustable boom backstop device
When the boom is elevation upwards, the detector board approaches to detecting switch; when reaching
maximum elevating angle, the detector board impacts detecting switch and the switch is off, then warning
signal is sent out and the elevating motion stops so as to avoid dangerous accidents.
2. Hydraulic-controlled winch ratchet lock device
The automatic-controlled winch ratchet lock device ensures safe and reliable boom orientation,
easy and comfortable operation.
3. Comfortable Operator’s Cab
Adjustable damping chair can change seat angle; air-conditioner and roller blinds build comfortable
operation environment
4. It embodies the design idea of putting people first. The brand-new design for whole vehicle layout,
outline, drive’s cab, operator’s cab and control components by using 3 dimensional styling technology
and ergonomic principle makes the operator more comfortable
Specification:
|
Item |
Unit |
Data |
|
|
Max. rated lifting capacity |
Base boom |
t |
180 |
|
Fixed jib |
t |
33.5 |
|
|
Luffing jib |
t |
50 |
|
|
Max. load moment |
t.m |
1000.8 |
|
|
Boom length |
m |
19～82 |
|
|
Boo elevating angle |
Boom working condition |
° |
30～83 |
|
Tower jib working condition |
° |
30～85 |
|
|
Fixed jib working condition |
° |
30～85 |
|
|
Fixed jib length |
m |
13～31 |
|
|
Tower jib length |
m |
20～59 |
|
|
Hoist system max. single line speed (with no load, at 5th layer) |
m/min |
130 |
|
|
Boom elevating system max. single line speed (at 1st layer) |
m/min |
2×28.4 |
|
|
Max. slewing speed |
r/min |
1.5 |
|
|
Max. travel speed |
km/h |
1.3 |
|
|
Grade-ability |
|
30 |
|
|
Mean ground pressure |
MPa |
0.105 |
|
|
Engine output power |
kW |
250 |
|
|
Total vehicle mass (main hook block, full counterweight, 19m boom) |
t |
170 |
|
|
Max. mass of single unit in transport state |
t |
37 |
|
|
Max. dimension of single unit (turntable) in transport state (L×W×H) |
m |
11.5×3.0×3.3 |
|
