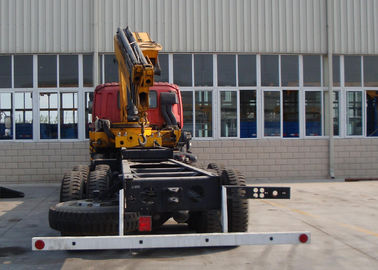

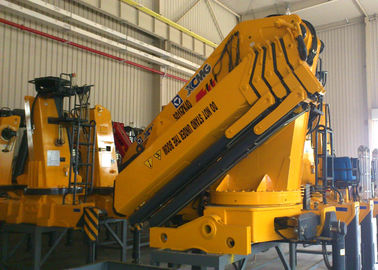

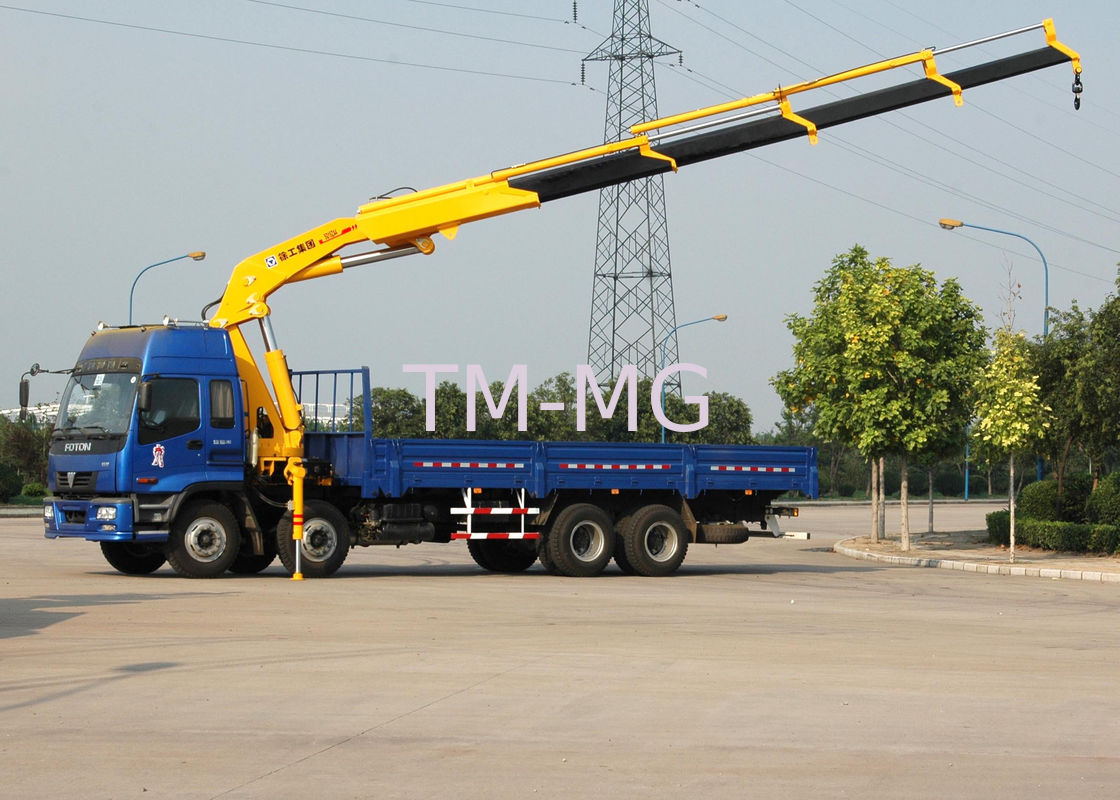

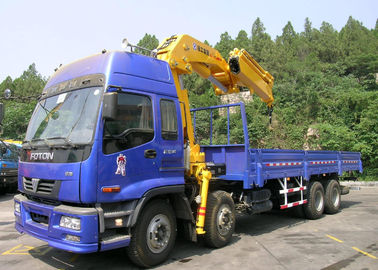

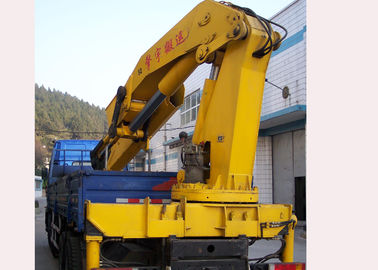

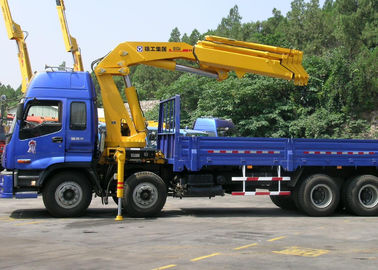

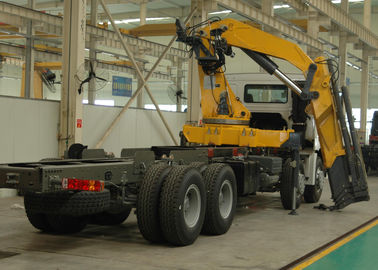

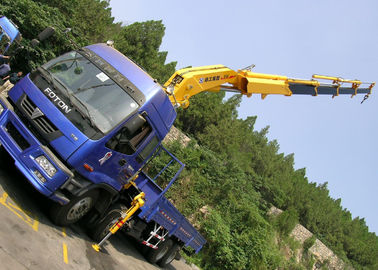

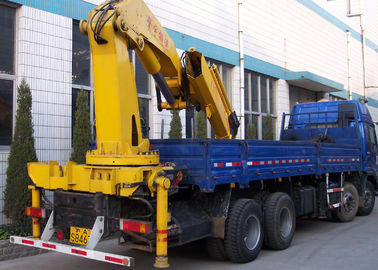

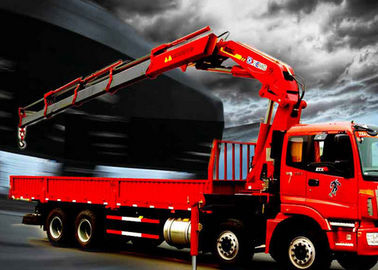

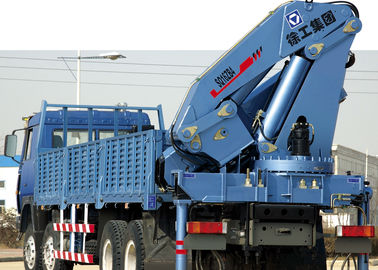

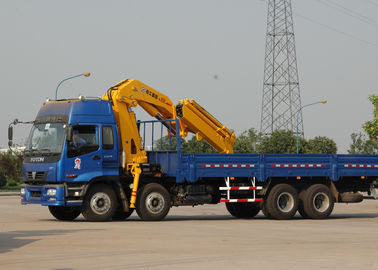

Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane

Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane
Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane

Large Image :  Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ16ZK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Folding Boom Truck Crane
Max. Lifting Capacity: 16 Ton Max. Lifting Moment: 40 T.m
Max. Lifting Height: 16m Crane Weight: 5000 Kg
Oil Tank Capacity: 250L Rotation Angle: (360°) All Rotation
Condition: New
High Light:

folding boom crane

,

knuckle boom crane



Durable Hydraulic Knuckle Boom Truck Mounted Crane, 16 Ton Truck Loader Crane





Quick Details:



Name: Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane

Max. Lifting Capacity: 16 ton

Max. Lifting Moment: 40 t.m

Max. Oil Flow of Hydraulic System: 63 L/min

Max. Lifting height:16meters

Brand: XCMG

Crane Weight: 5000 kg

Oil Tank Capacity: 250 L





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ16ZK4Q is lifting capacity is 16tons, moment is 40T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ16ZK4Q

Unit

Max. Lifting Moment

40

t.m

Max. Lifting Capacity

16000

kg

Recommend Power Needed At Recommend Oil Flow

37

kw

Max. Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

31.5

MPa

Oil Tank Capacity

250

L

Rotation Angle

(360°) All Rotation

Crane Weight

4780

kg

Installation Space

1500

mm

Choice of Chassis

NXG1310D3ZEX ;

BJ1317VNPJJ-S5;

DFL1311A3



SQ16ZK4Q Lifting capability diagram

Working radius(m)

2.5

4.098

5.898

7.748

9.618

11.518

Lifting capacity(kg)

16000

9600

6600

4850

3500

2600



 Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane 0Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane 1

Dimension Drawing:



Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane 2

Durable Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane 3





Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
