Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wrecker Tow Truck | Chassis Model: | EQ1070TJ9AD3 |
|---|---|---|---|
| Platform Capacity: | 3000kg | Rated Tration Of Winch: | 40KN |
| Max. Under-lift Capacity: | 1500kg | Rated Under-lift Capacity: | 7490kg |
| Power: | 88.91kw | ||
| Highlight: | Breakdown Recovery Truck,Flatbed Tow Truck |
||
Quick Detail:

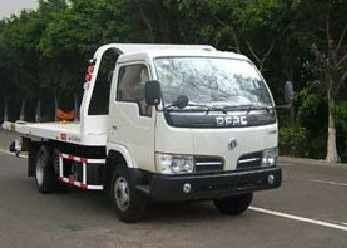

Name: XCMG Flatbed Tow Truck Max. under-lift capacity: 1500kg
Rated under-lift capacity: 7490kg Platform capacity: 3000kg
Rated tration of winch: 40KN Dimension: 7430*2300*2540/2720mm
Tag: tow truck, breakdown recovery truck, wrecker tow truck, flatbed tow truck, wrecker truck, towing truck
Description:
XCMG flatbed breakdown trucks are developed basing on top-advanced technology, combined with 3D finite element designer. With the help of strong technology capacity of the group, now our company has the all serial tow trucks of flatbed type, boom and sling integrated type, boom and sling separated type and extend type. Product lifting capacity covered from 6 tons to 60 tons, fit the client’s requests and various rescue conditions.
XCMG tow trucks are useful on the clear jobs of highway and city road, treating vehicle failure, accidents and parking violations, fast and efficiently, keep the road safe and open. In the mean time, our company promotes intellectual property protection and a couple of technology applied for a patent.
Specification:
|
Vehicle Model |
|
XZJ5070TQZ |
|
Chassis model |
|
EQ1070TJ9AD3 |
|
Egine model |
|
CY4102-C3CCY4102-E3C |
|
Power |
kw |
88, 91 |
|
Wheelbase |
mm |
3800 |
|
Maximum under-lift capacity |
kg |
1500 |
|
Rated under-lift capacity |
kg |
7490 |
|
Platform capacity |
kg |
3000 |
|
Winch quantity |
piece |
1 |
|
Rated tration of winch |
KN |
40 |
|
Outling dimensions |
mm |
7430x2300x2540, 2720 |
Competitive Advantage:
1. With the capacity of carry two, save money and labor.
2. More reasonable design on joint point. Avoid the limit of moving the boom before moving the slidebed.
3. Plenty of applications are optional for different type of vehicles.
4. Apply the 24 degree taper for hydraulic sealing system. Key Hydraulic components are imported.
5. Patented fast amount pulley system are easy to operate.
