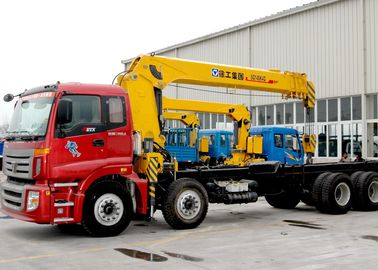

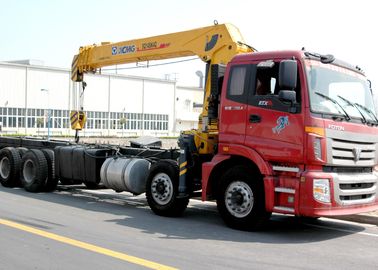

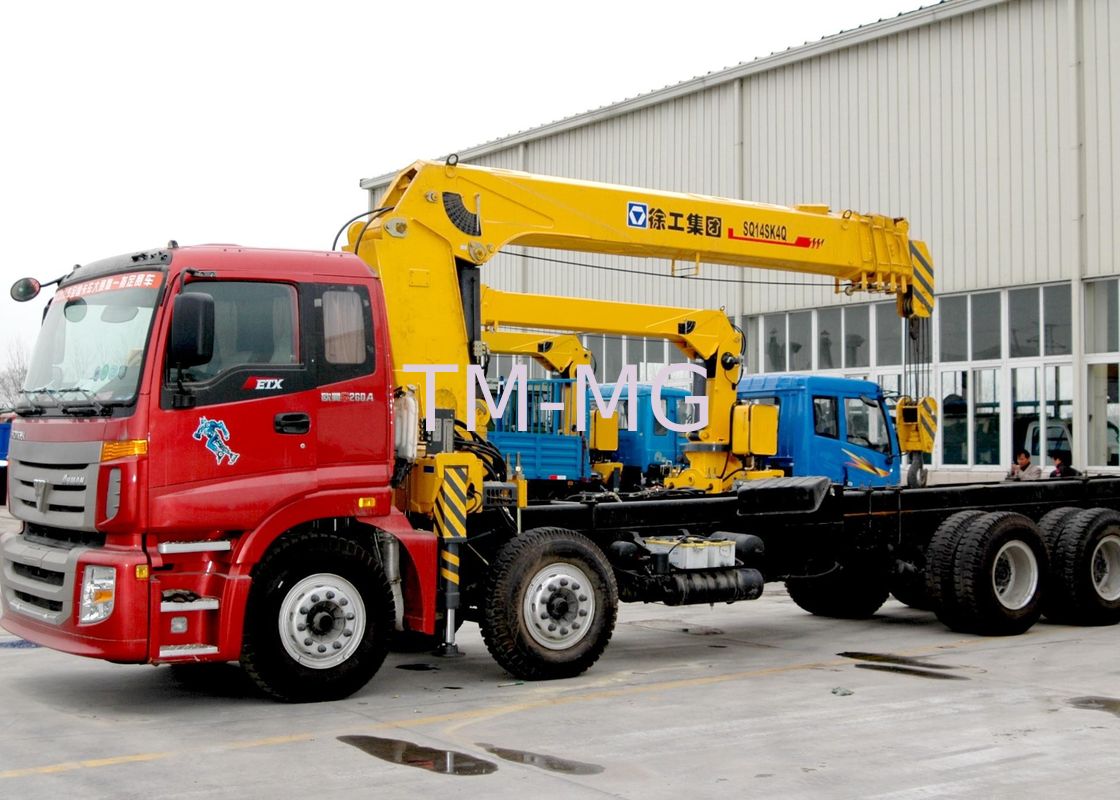

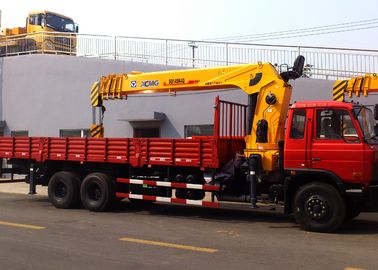

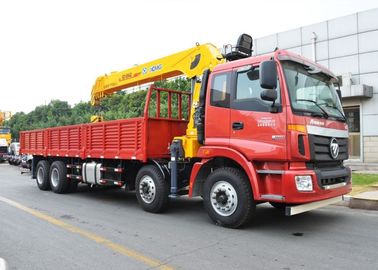

Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane

Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane
Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane

Large Image :  Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: SQ14SK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Model: SQ14SK4Q
Max Lifting Capacity: 14Ton Crane Weight: 4800kg
Max. Lifting Height:: 50m
High Light:

Hydraulic Mobile Crane

,

Truck Loading Crane



Durable Fast Response Boom Truck Loader Crane, Telescopic Boom Crane





Quick Details:



Name: Telescopic boom crane                                               Brand: XCMG

Max. Lifting Capacity: 14 ton                                                  Max. Lifting Moment: 35 t.m

Max. Oil Flow of Hydraulic System: 63 L/min                         Max. Lifting height: 17.5meters

Crane Weight: 4800 kg                                                          Oil Tank Capacity: 160 L





Specifications:



Model

SQ14SK4Q

Unit

Max. Lifting Capacity

14000

kg

Max. Lifting Moment

35

T.M

Recommend Power

32

kw

Max. Oil Flow of Hydraulic System

63

L/min

Max. Pressure of Hydraulic System

26

MPa

Oil Tank Capacity

160

L

Rotation Angle

All Rotation

Crane Weight

4800

kg

Installation Space

1300

mm

Choice of Chassis

BJ1317VNPJJ-S5; NXG1310D3ZEX;



SQ14SK4Q Lifting capability diagram

Working radius(m)

2.5

5

8

11

13.2

15.8

Lifting capacity(kg)

14000

6000

3500

2300

1800

1200







Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ14SK4Q is lifting capacity is 14 tons, moment is 35 T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­





Dimension drawing


Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 0



 Optional parts:



1. Moment limited device
Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 1

  1. Remote control equipment
    Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 2
  2. Anti-overwind magnet valve
     Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 3
  3. High seat on column
    Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 4
  4. Work light
    Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 5
  5. Assisatant stabilizer leg
    Durable Fast Response Boom Truck Loader Crane , Telescopic Boom Crane 6



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm






Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity

4, Compact hinge point design take up smaller space

5, The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.
