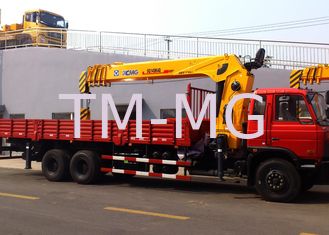

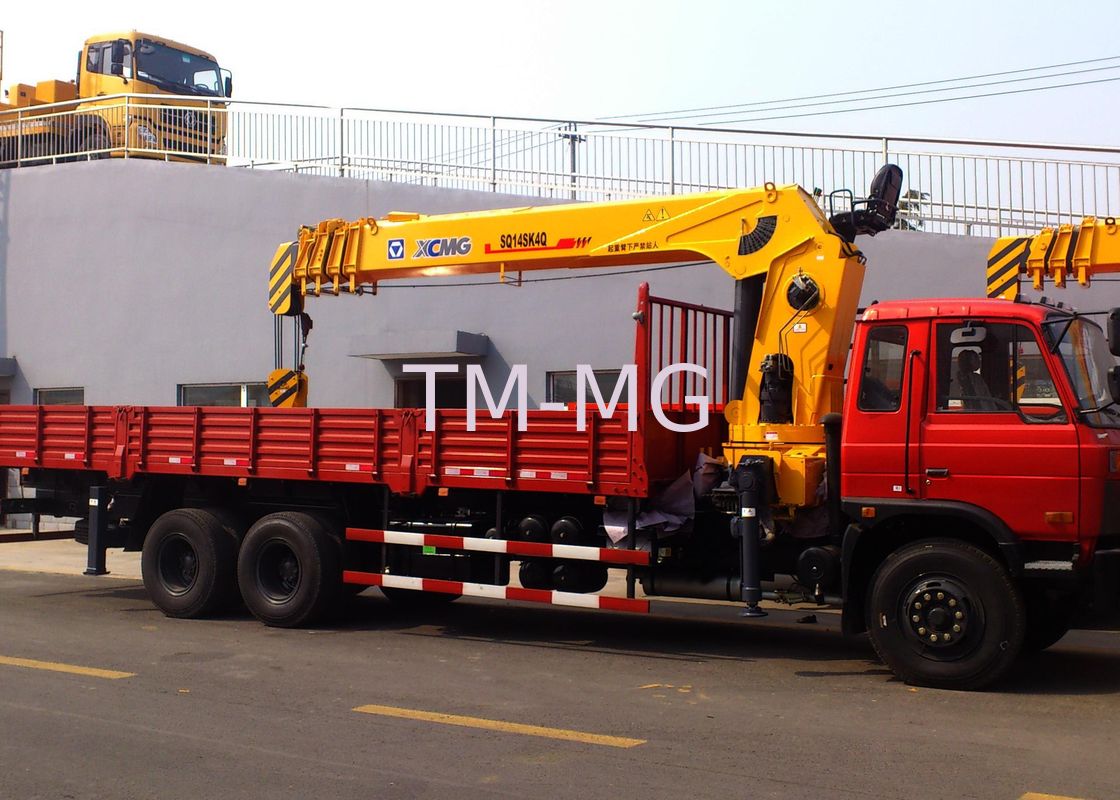

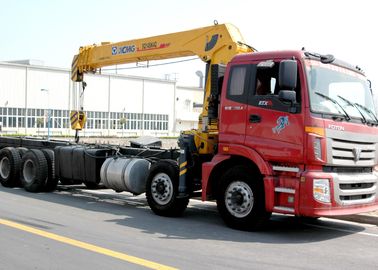

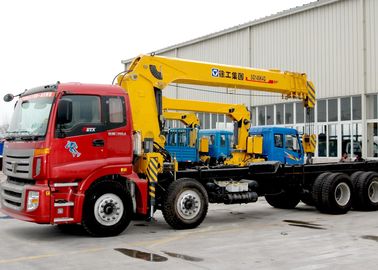

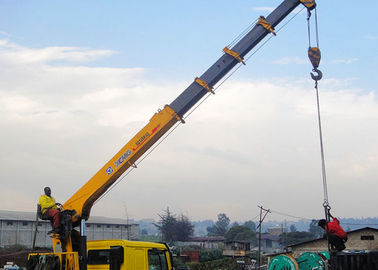

Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow

Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow
Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow

Large Image :  Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ14SK4Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Telescoping Boom Crane
Max. Lifting Capacity: 14 Ton Max. Lifting Moment: 35 T.m
Max. Lifting Height: 17.5m Crane Weight: 4845 Kg
Oil Tank Capacity: 160L Rotation Angle: 360° All Rotation
High Light:

hydraulic truck crane

,

mobile truck crane



Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow





Quick Details:



Name: Telescoping boom crane, Lorry mounted crane, Hydraulic truck crane

Max. Lifting Capacity: 14 ton

Max. Lifting Moment: 35 t.m

Max. Oil Flow of Hydraulic System: 63 L/min

Max. Lifting height: 17.5meters

Brand: XCMG

Crane Weight: 4845 kg

Oil Tank Capacity: 160 L







Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

 Telescopic boom crane SQ14SK4Q is lifting capacity is 14tons, moment is 35 T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­





Specifications:



Model

SQ14SK4Q

Unit

Max. Lifting Capacity

14000

kg

Max. Lifting Moment

35

T.M

Recommend Power

30

kw

Max. Oil Flow of Hydraulic System

63

L/min

Max. Pressure of Hydraulic System

26

MPa

Oil Tank Capacity

160

L

Rotation Angle

360° All Rotation

Crane Weight

4845

kg

Installation Space

1300

mm

Choice of Chassis

BJ1317VNPJJ-S5; NXG1310D3ZEX;



SQ14SK4Q Lifting capability diagram

Working radius(m)

2.5

5

8

11

13

15.5

Lifting capacity(kg)

14000

6000

3500

2300

1800

1200





Dimension drawing


Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 0



 Optional parts:



1. Moment limited device
Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 1

  1. Remote control equipment
    Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 2
  2. Anti-overwind magnet valve
     Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 3
  3. High seat on column
    Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 4
  4. Work light
    Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 5
  5. Assisatant stabilizer leg
    Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow 6



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm






Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.

4, Compact Hinge point design take up smaller space.

5, The worK is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing implulse equipment that make vehicle running safely.



F A Q

Q: Are you a trading company?
A: No, we have our own factory, factory+trading company.

Q: How is your warranty?
A: We provide 12 months warranty for our products.

Q:If I don’t know how to install, what should I do?
A: Don’t worry about that, we have professional engineers help you.

Q: How is your after-sale service?
A: 24 hours and 7days service.
