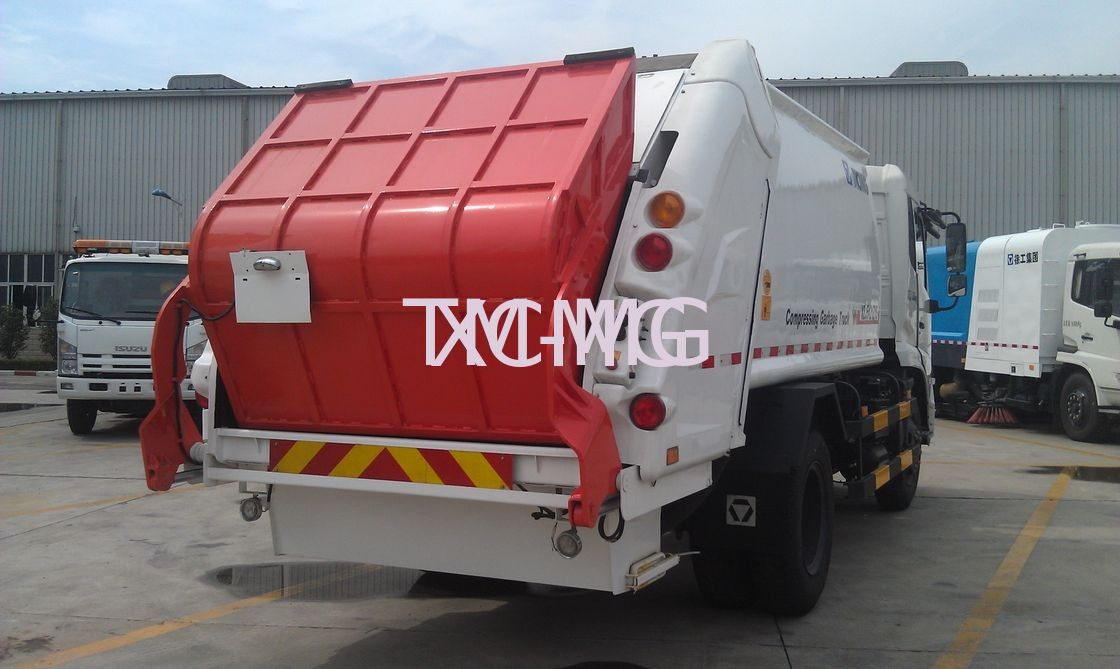

Customized Dongfeng 4X2 Compression rear compactor truck

Customized Dongfeng 4X2 Compression rear compactor truck
Customized Dongfeng 4X2 Compression rear compactor truck

Large Image :  Customized Dongfeng 4X2 Compression rear compactor truck Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE ISO
Model Number: XZJ5122ZYS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Vehicle Model: XZJ5122ZYS Chassis Model: NXG1120D3ZAX
Maximum Total Mass: 12000kg Kerb Mass: 8280kg
Rated Pay Load: 3525kg Carriage Volume: 9.6m3
Hvdraulic Svstern Pressure: 20Mpa
High Light:

rescue tow truck

,

street sweeper truck


Customized Dongfeng 4X2 Compression rear compactor truck



Specification:




Vehicle Model

XZJ5122ZYS

Chassis model

NXG1120D3ZAX

Maximum total mass

12000kg

Kerb mass

8280kg

Rated pay load

3525kg

Carriage volume

9.6m3

Garbage bucket volume

1.2m3

width of feeding mouth

1696mm

Hvdraulic svstern pressure

20Mpa

Outline dimensions

7460/8040/7800*2487*3015mm

Wheelbase

3800mm

Time of compression

16-18s

unload garbage time

≤30s






Competitive Advantage:



1. Truck with Euro 2 and Euro 3 Emission Standard;
    Drive model:4*2,6*4;


    Brand with  Dongfeng, JMC, ISUZU, JAC, Foton, etc

.
2. Cab: One&Half-Row(rated passengers:3)


    Steering control: Left Hand Dive/Right Hand Drive


3. Capacity:4CBM-16CBM



4 .The truck compacts the waste by hydraulically powered mechanism, by the use of hydraulics, the barrel is locked during the overturning process, which is very safety and reliable





Description:



Dongfeng 4X2 Compression rear compactor truck, rear loading detachable container include sealed container, hydraulic system and operating system. The whole container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency.





Application:



Rear loading detachable container are special for collecting the urban domestic refuse and other compressible refuse.


­
Garbage trucks are widely used in sanitation, municipal, industrial enterprises, property plot, garbage and concentration of residential areas.
