Vehicle Model: | XZJ5071ZXX | Chassis Model: | EQ1070T35DJ3AC |
---|---|---|---|
Maximum Lifting Capacity: | 3000kg | Kerb Moss: | 3220kg |
Rated Pay Load: | 4080kg | Tilt: | ≥48° |
Wheel Base: | 3300mm | ||
High Light: | road wrecker truck,rescue tow truck |

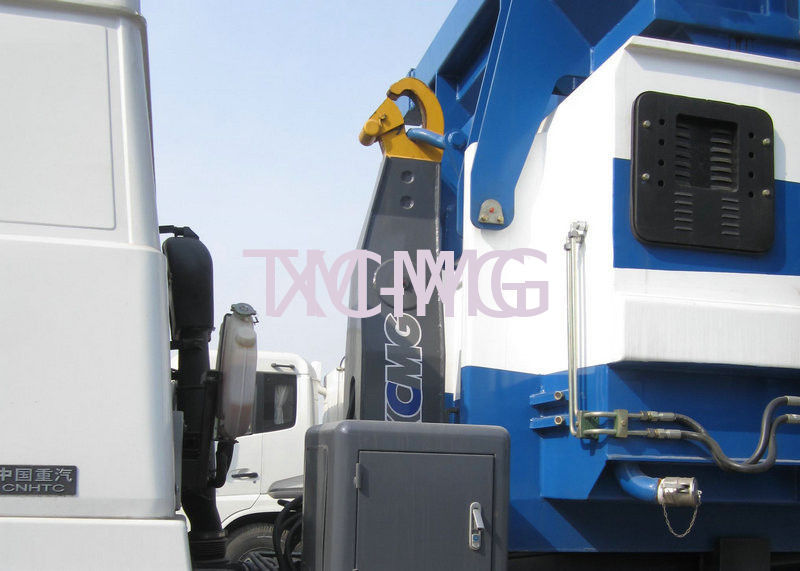

Bulk Loading Special Purpose Vehicles Hook Lift Garbage Truck With 2-3ton XZJ5071ZXX
Description:
Detachable container garbage truck is a vehicle combined function of loading, unloading, and transport. Use the pull arm to load the garbage containers (bulk load container, combined compress container, separated compress container), and unload automatically. The efficiency will greatly improved by reduce the empty run and loading time via multi-container application. 1,2,3 tons series apply for the concerned container for bulk loading. 5 to 12 tons series can use as bulk loading and small size horizontal detachable refuse transfer station. Bigger than 14 tons can match the large size horizontal detachable refuse transfer station.
Application:
The garbage truck produced by XCMG group is a kind of special sanitation vehicle. The product is more economic and energy-saving, flexible and highly efficient, and it is especially applicable to the garbage handling work in populated areas in cooperation with garbage transfer station.
Specification:
Vehicle Model |
XZJ5071ZXX |
chassis Model |
EQ1070T35DJ3AC |
Maximum lifting capacity |
3000kg |
maximum total mass |
7495kg |
Kerb Moss |
3220kg |
Rated pay load |
4080kg |
Tilt |
≥48° |
Time of container loading |
≤60 |
Time of container unloading |
≤60 |
Max. pressure of hydraulic system |
20Mpa |
Size(length×width×height) |
5265*2045*2210m |
wheel base |
3300mm |
height of hook center |
930mm |
track width of the box |
1070mm |
Competitive Advantage:
1. Hooklift arm device of XCMG are complied with industry standards, with high standardization, highly optimized for general use.
Simplify electric arcuit and reduce failure rate by adopt electric-gas-liquid integration control technology and PLC control
2. Control buttons and levers are designed with humanity are easy to operation.
3. Two control ways of electric and hand-operated control electric control are opeted in the cab in order to improve the working conditions and reduce operation intensity manual operation are adopoted out of cab in order to make sure the work performed normally when the electric systems faults occurd
4. Vehicle stability can be open and closed freely, in case to appcar tilt phnomenon when it is overload
5. Inerlock function of hydraulic system ensure that the movements can be
6. Rearview monitor system of optional is offered,. It is very conveinent toperform visible load and unload operation in the cab.
