9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX

9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX
9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX 9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX 9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX 9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX

Large Image :  9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: XZJ5160ZXX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Max. Lifting Capacity: 14000kg Rated Pay Load: 9165kg
Height Of Hook Center: 1570mm Track Width Of The Box: 1070/900mm
Chassis Model: DFL1160BX2 Kerb Moss: 6640kg
High Light:

rescue tow truck

,

street sweeper truck



9tons Hook Arm Garbage Truck, Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX





Specification:



Vehicle Model

XZJ5160ZXX

chassis Model

DFL1160BX2

Maximum lifting capacity

14000kg

maximum total mass

16000kg

Kerb Moss

6640kg

Rated pay load

9165kg

Tilt

≥48°

Time of container loading

≤60s

Time of container unloading

≤60s

Max. pressure of hydraulic system

27Mpa

Size(length×width×height)

7479*2436*3038(mm)

wheel base

4500mm

height of hook center

1570mm

track width of the box

1070/900mm

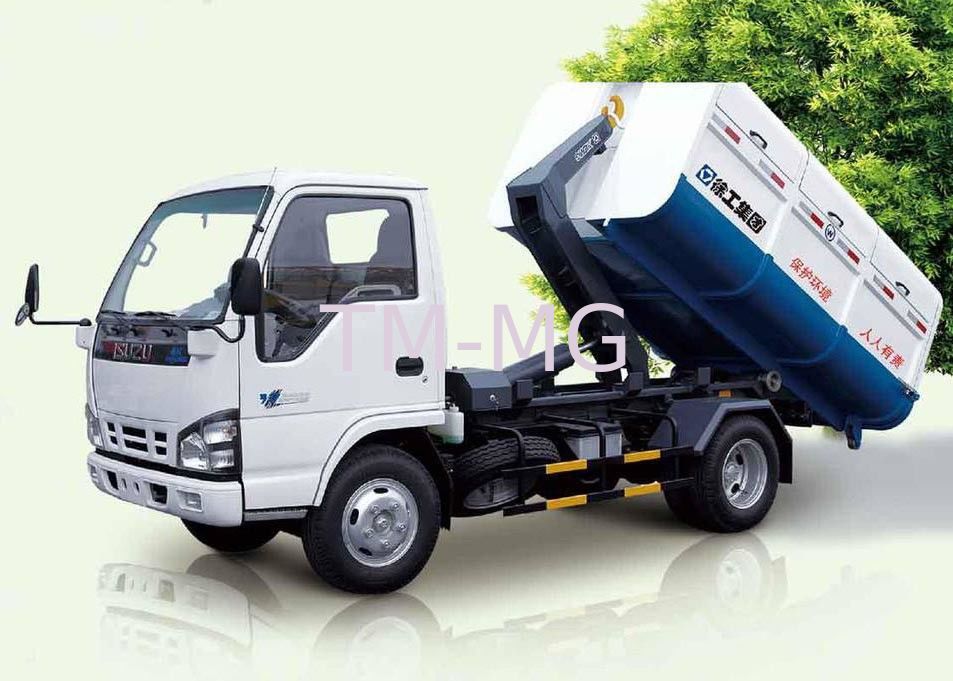

9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX 0



Description:



Detachable container garbage truck is a vehicle combined function of loading, unloading, and transport. Use the pull arm to load the garbage containers (bulk load container, combined compress container, separated compress container), and unload automatically. The efficiency will greatly improved by reduce the empty run and loading time via multi-container application.

Size :7479mm*2436mm*3038mm





Application:



1,2,3 tons series apply for the concerned container for bulk loading. 5 to 12 tons series can use as bulk loading and small size horizontal detachable refuse transfer station. Bigger than 14 tons can match the large size horizontal detachable refuse transfer station.

­





Competitive Advantage:



1. Hooklift arm device of XCMG are complied with industry standards, with high standardization, highly optimized for general use.

Simplify electric arcuit and reduce failure rate by adopt electric-gas-liquid integration control technology and PLC control

2. Control buttons and levers are designed with humanity are easy to operation.

3. Two control ways of electric and hand-operated control electric control are opeted in the cab in order to improve the working conditions and reduce operation intensity manual operation are adopoted out of cab in order to make sure the work performed normally when the electric systems faults occurd

4. Vehicle stability can be open and closed freely, in case to appcar tilt phnomenon when it is  overload

5. Inerlock function of hydraulic system ensure that the movements can be.

6. Rearview monitor system of optional is offered,. It is very conveinent toperform visible load and unload operation in the cab.

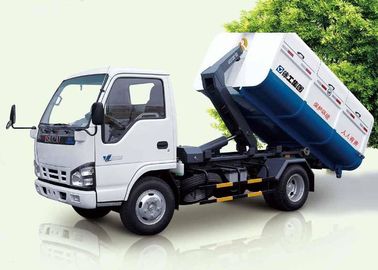

9tons Hook Arm Garbage Truck , Special Purpose Vehicles Arm Roll Truck XZJ5160ZXX 1
