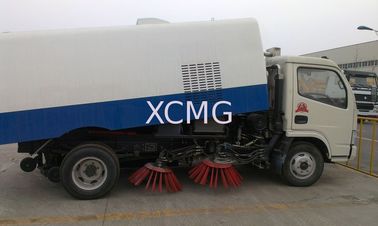

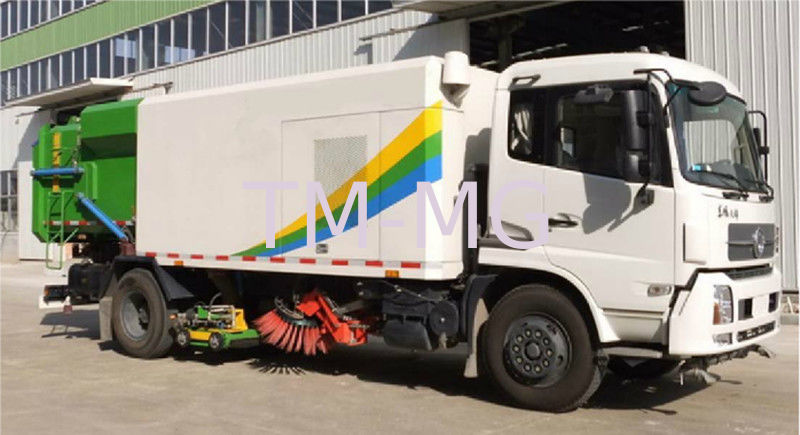

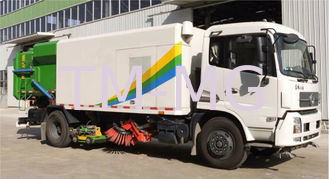

8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles

8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles
8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles 8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles

Large Image :  8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE ISO
Model Number: XZJ5160TXS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 11000pcs/year
Detailed Product Description
Chassis Model: DFLll60BX Curb Weight: 12450kg
Total Mass: 16000kg Cleaning And Sweeping Width: 3.5m
Cleaning And Sweeping Speed: 3~15 Km/h
High Light:

rescue tow truck

,

street sweeper truck


8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles


Scope of application:

Multifunction road sweeper vehicle is used for cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.


Principle:

Road sweeper with washer has the functions of road washing, sweeping, rinsing and sewage recovery. Except a combination of the sweeper and cleaner, a low presure pump is added on  the vehicle, to spray water like a sprinkler.
This muti-fuction vehicle is suitable for the  cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.


Advantages:

1. This sweeper combines the functions of sweeping and high pressure washing, using  'established  in the  home of two extra-wide brushes + mid + mid-lateraljet nozzle bar' approach. It has high efficiency, good mobility, multiply functions, and high vehicle utilization ratio.
2. This sweeper has a centralized operational control cab, making the operation much easier. Hand  pumps and stand by operation control box are eq uipped outside the cab for emergency use in maintenance.
3. Taking advantages of separate sub-engine driven fans, high-pressure pumps and other work devices the car can ensure that the power meets the work needs under all exercises.
4. The gear between the vice-engine and the fan adopts the vehicle-use clutch device which is reliable and easy to replace. The high-pressure pump adopts imported pneumatic clutch, making the combina-tion and escape of power fast and effectively ensu ring smooth engine power output.
5. The scan disk has the automatic obstacle avoidance protection function and the automatic reset function.
6. The sweeping rotation speed can be adjusted according to different cleaning conditions. The choice ofhig h, medium and low grades ensu res good clea ning effect under va rious pollution conditions.
7. This sweeper makes use of advanced. Efficient and specialized fans withexcellentanti-seismic and antiseptic function.
8. Water tanks equipped before and after the car a re made of qualified stainless steel. With capacious water tanks, the car can work for long hours.


Specifications:

Customized suction fan provides ample wind force; ensure a smooth and efficient completion of work.


Vehicle models

XZJ5160TXS

Chassis model

DFLll60BX

Dimensions

8950*2480*3050

Curb Weight

12450kg

Total mass

16000kg

Cleaning and sweeping width

3.5m

Cleaning and sweeping speed

3~15 km/h

Sweeping width

3.5m

Sweeping speed

5~20 km/h

Carriage volume

16Mpa

Clean water rated flow

154L/min

Maximum cleaning capacity

70000 m2/h

Work efficiency

≥95%

Unload Angle

≥50°

Sprinking range

24m

Volume of water tank

9000L

Volume of dustbin

7000L



8tons Multifunction Road Sweeper Truck / Waste Collection Vehicles 0
