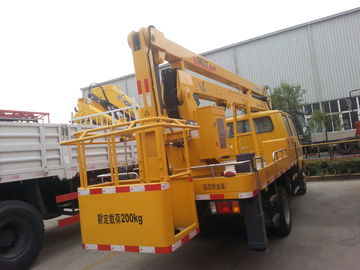

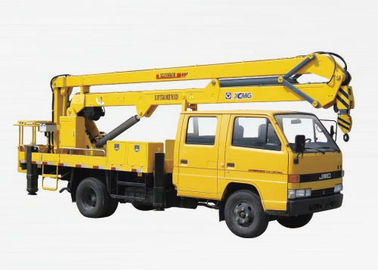

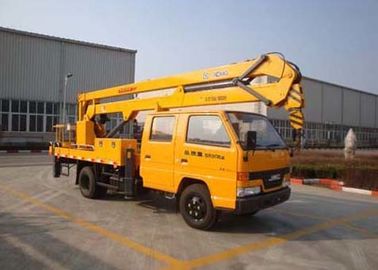

8.1m High Platform Truck Mounted Lift 2000kg lifting capacity

8.1m High Platform Truck Mounted Lift 2000kg lifting capacity
8.1m High Platform Truck Mounted Lift 2000kg lifting capacity 8.1m High Platform Truck Mounted Lift 2000kg lifting capacity 8.1m High Platform Truck Mounted Lift 2000kg lifting capacity 8.1m High Platform Truck Mounted Lift 2000kg lifting capacity

Large Image :  8.1m High Platform Truck Mounted Lift 2000kg lifting capacity Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: XZJ5060JGK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Name:: Truck Mounted Boom Lift Max. Lifting Height:: 8.9m
Max. Lifting Capacity:: 2000kg Max. Operating Height:: 17.3m
Max. Operating Radius:: 9.6m Dimension:: 7660x2000x2920(mm)
Rated Load: 200kg Chassis: JX1060TSG23
High Light:

rescue tow truck

,

road wrecker truck



Quick Details:

Name: truck mounted boom lift
Max. Lifting Height: 8.9m
Max. Lifting Capacity: 200kg
Max. Operating Height: 17.3m
Max. Operating Radius: 9.6m
Rated Lood: 2000kg
Dimension: 7660x2000x2920(mm)
Power of Engine: 85kw
Passengers: 2+3 persons


Specifications:


Max. Operating Height

17.3m

Max. Operating Radius

8.9m

Rated Lood

200kg

Slewing Angle

±360° continuing

Max. Operating Radius Maximum Operating Height

2.7m

Max. Operating Height Maximum Operating Radius

9.6m

Max. Lifting Capacity

2000kg

Max. Lifting Height

9.3m

Dimension in Driving(L*W*H)

7660x2000x2920(mm)

Chassis

JX1060TSG23

Engine

JX493ZLQ3

Power of Engine

85kw

Passengers

2+3 persons



Description:

XCMG Equipment has a variety of Truck Mounted Aerial Work Platforms ranging in height from 14 to 32 meter-with horizontal reaches up to 18 meters. These lifts are amongst the largest of their kind and are valuable tools for many high reach needs, such as construction needs and building maintenance. XCMG Truck Mounted lifts are rented and manned with two operators. They provide mobility for jobs that must move around to different locations and they provide stabilization for job locations with rugged and uneven work surfaces. Most of all, Truck Mounted Lifts save you time and money and provide you with a safe, reliable option for any project that it demands.


Applications:

­Often referred to as “knuckle booms”, articulating boom lifts are used for reaching up and over machinery, equipment and other obstacles mounted on floors.


Competitive Advantage:

1. Proportioning valve and proportion handle are purchased from HAWE, Germany
2. CAN BUS plus manual control panel on rotary platform provide a stepless speed regulating, outstanding control experience.
3. Both the rotary platform and the working basket have the control panel and control the throttle and the engine on/off.
4. Combine auto leveling system include equalizing lever and synchronous cylinder to insure the working basket always level.
5. The 4 outriggers can be controlled separately on horizontal and vertical way.
6. Interlock, soft leg protection functions can ensure the working security
7. Boom cannot slew if the horizontal leg not in right place, but can up and down, both ensure security and improve the efficiency.
8. Equipped with backup pump for emergency
9. Electronic timer record the working time for maintaining.
10. No range limit, all range operate.
11. Both the rotary platform and the working basket can rotate.
12. The three arms, three telescopic arms can expand synchronously.
