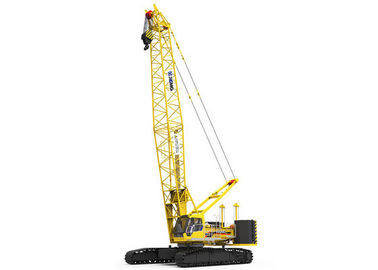

75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW

75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW
75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW

Large Image :  75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE ISO
Model Number: XGC75
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 100pcs/year
Detailed Product Description
Product Name: Hydraulic Crawler Crane Brand: XCMG
Max. Swing Speed: 3r/min Engine Output Power: 154/153kW
Fixed Jib Length: 7~19m Boom Length: 13~58m
Condition: New
High Light:

heavy lifting cranes

,

boom truck crane



75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW





Principle:



XGC75 crawler crane is an independent-developed hydraulic drive, full swing and lattice boom crawler

crane, absorbing foreign advanced technology and combining present domestic situations. It features

easy and maneuverable control, smooth vehicle travelling.





Scope of application:



Crawler crane is mainly used for lifting heavy things and transporting them to other places. crawler

 cranesmake short work of toughest jobs. They are available in a broad range of lifting capacities for

applications

in a wide variety of fields, including heavy-duty foundation work, this product is mainly designed for

engineering projects like subway, bridge, petrochemical, power station, nuclear power construction



75 ton Boom Truck Hydraulic Crawler Crane XGC75 , portable boom crane 154/153kW 0





Specification:



Item

Unit

Parameter

Max. lifting capacity

Boom

t

75

Jib

t

12

Max. load moment

kN.m

--

Boom length

m

13~58

Boom elevating angle

°

-3~80°

Fixed jib length

m

7~19

Fixed jib offset



10°,30°

Max. single line hoist speed (at 5th layer with no load)

m/min

--

Max. single line elevating speed (at 5th layer with no load)

m/min

--

Max. swing speed

r/min

3

Travel speed

km/h

1.4

Min. elevating time

s

--

Winch hoist speed(with full load)

m/min

--

Max. grade-ability



30%

Mean ground pressure

MPa

0.08

Engine output

kW

154/153

Total mass (main hook block,16m boom)

t

61

Max. base machine weight for transport
(without counterweight, L/R crawler, lattice boom)

t

37.0

Max. base machine dimension for transport (L×W×H)

m

12.7×3.4×3.4




Advantage:


1. Rexroth swing reducer

Planetary reducer, controllable constant-close disc brake, high reliability, easy for maintenance.

2. Rexroth gear reducer

Built-in gear reducer with small turning radius, high maneuverability and reliability

3. Imported logic valve

Logic valve can realize precise logical control and simplify the system, easy for maintenance.

4. Imported PAT load moment indicator

LMI can detect working conditions of crawler crane, having the function of protection.





Safe and comfortable ergonomic design



1. Adjustable boom backstop device

When the boom is elevation upwards, the detector board approaches to detecting switch; when reaching

maximum elevating angle, the detector board impacts detecting switch and the switch is off, then warning

signal is sent out and the elevating motion stops so as to avoid dangerous accidents.


2. Hydraulic-controlled winch ratchet lock device

The automatic-controlled winch ratchet lock device ensures safe and reliable boom orientation, easy and

comfortable operation.


3. Comfortable Operator’s Cab

Adjustable damping chair can change seat angle; air-conditioner and roller blinds build comfortable

operation environment


4. It embodies the design idea of putting people first. The brand-new design for whole vehicle layout,

outline, drive’s cab, operator’s cab and control components by using 3 dimensional styling technology

and ergonomic principle makes the operator more comfortable
