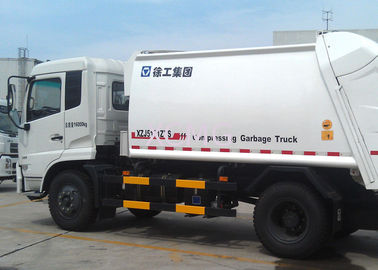

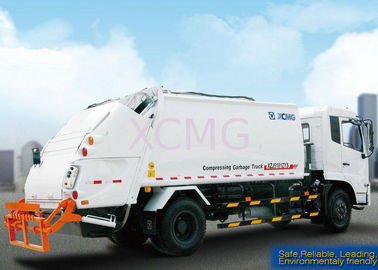

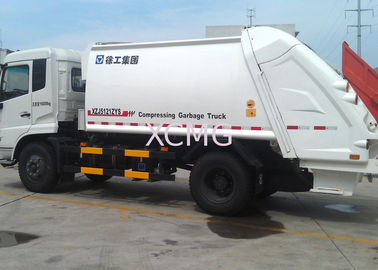

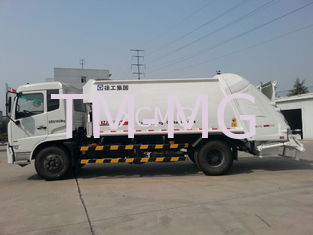

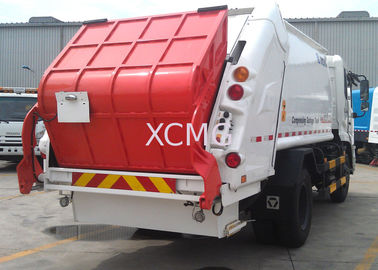

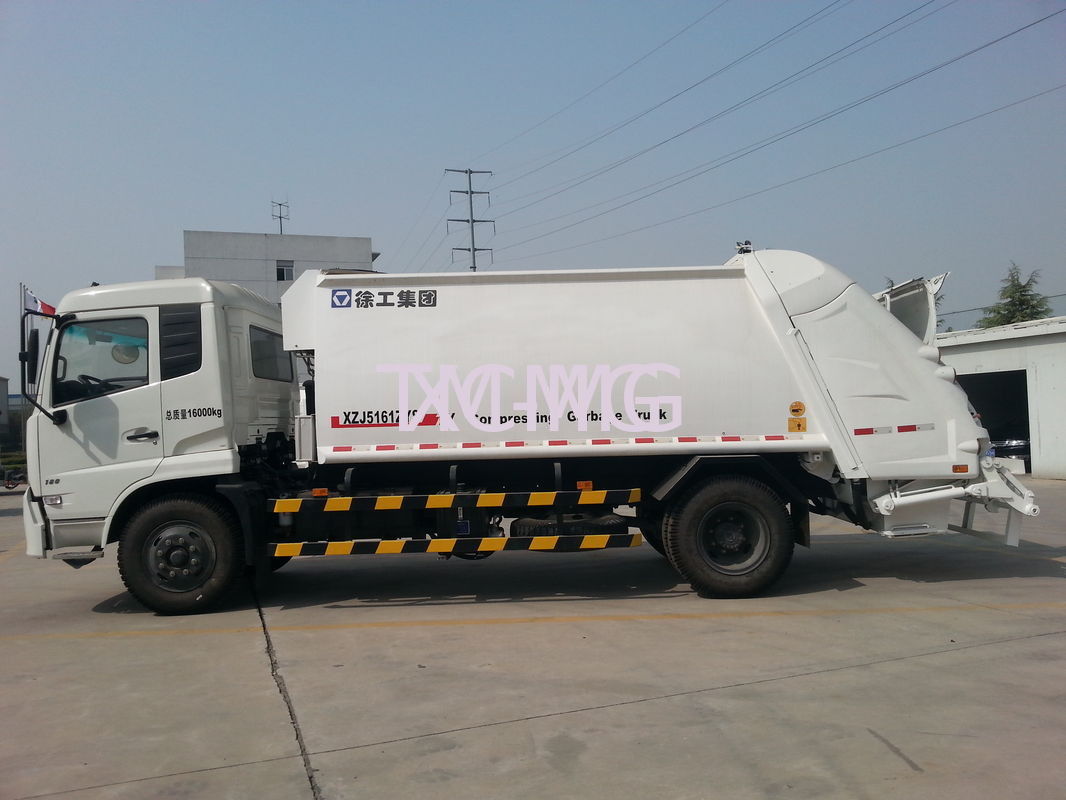

Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4

Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4
Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4 Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4 Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4 Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4 Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4

Large Image :  Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4 Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: XZJ512lZYSA4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 11000pcs/year
Detailed Product Description
Vehicle Model: XZJ512lZYSA4 Chassis Model: DFL1120bB3
Maximum Total Mass: 12495kg Kerb Mass: 820083408475kg
Outline Dimensions: 764080707740mm Wheelbase: 3800mm
High Light:

road wrecker truck

,

street sweeper truck



Collecting Refuse Special Purpose Self Compress, Self Dumping ZJ512lZYSA4





­Specification:



Vehicle Model

XZJ512lZYSA4

Chassis model

DFL1120bB3

Maximum total mass

12495kg

Kerb mass

820083408475kg

Rated pay load

110039603825kg

Carriage volume

9.6m3

Garbage bucket volume

l.4m3

width of feeding mouth

1696mm

Hvdraulic svstern pressure

20Mpa

Outline dimensions

764080707740mm

Wheelbase

3800mm

Time of compression

16-18s

unload garbage time

≤30s



Transmission
Gear configuration:  6 forward and 1 reverse speed
Syncromesh:  Syncromesh on gear 2 to 6

PTO System
Type of Drive:  Live drive PTO at engine



Description:



Rear loading detachable container include sealed container, hydraulic system and operating system. The whole container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency.





Applications:



Rear loading detachable container are special for collecting the urban domestic refuse and other compressible refuse.

Garbage trucks are widely used in sanitation, municipal, industrial enterprises, property plot, garbage and concentration of residential areas.



Competitive Advantage:



  1. The key units of hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts.
  2. Advanced electric controlled system adopts PLC (Programmable Logic Controller) integrated controls, mechatronics-hydraulics-integrated controls, reaching high automatization.
  3. Pushplate valve are equipped with balance valve which can  made  pushplate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage.
  4. Beautiful streamline appearance, upper vehicle adopts high strength anti-rust steel plate which can prolong the service life of vehicle.
  5.  Convenient control system   It is convenient to operate, job control boxes are separately installed in the cab and vehicle end. The control box installed in the cab can control the operation of dumping garbage and selective mode( such as auto-matic or hand-operated) ; the control box installed on the vehicle end can control the operation of stuff mechanism and overturn bucket mechanism.
  6. Throttle control can be realized full-automatic control by control electric system,which meet the power needs of operation of compressing and dumping garbage; in other working condition, engine get into idle state automatically  that can reduce power wasting and faults rate.
  7. Rearview monitor system of optional is offered, it is very convenient to perform visible load and unload operation in the cab.
  8. Two controls of automatic control and hand-operated control are offered, greatly increased vehicle utilized rate.
  9. The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety.
  10. Basket equipment and overturn mechanism are optional, user can select collecting  mecha nism of optional according to the way of collecting garbage.
