Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane

China Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane supplier
Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane supplier Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane supplier Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane supplier

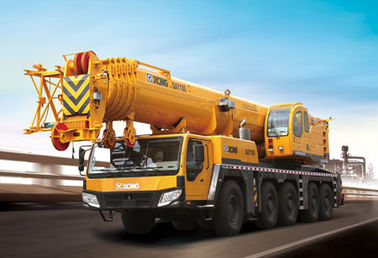

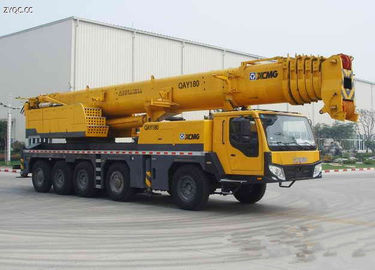

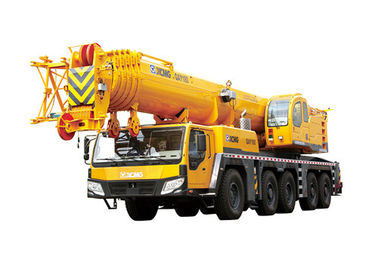

Large Image :  Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QAY180

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Contact Now
Detailed Product Description
Brand: XCMG Max. Rated Total Lifting Capacity: 180t
Overall Weight In Transport: 60t Fully Extended Boom: 62m
Max. Grade Ability: 50% Approach Angle: 16°



Durable Safety Transportion 180T Hydraulic Mobile Crane , QAY180 All Terrian Crane





Feature



• QAY180 new terrain crane integrates 222 patent techniques, adopts 38 new patents techniques, and shows 8 technical highlights.
• The overall length in travel is only 15.77m, the weight is 60t, the chassis length is 13.77m, and the minimum turning radius is 10m. The whole configuration includes 6-segment boom with the length of 62m and 3-segment jib with the length of 28m. 6 counterweight combinations can finish nearly 30000 working conditions.
• Adopt the imported Benz EFI engine with strong power system and imported 12-gear automatic control transmission. The 2nd, 4th, and 5th axles are the drive axle. The steering form is 10x10 full-axle steering.
• Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
• The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
• The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
• The comfortable cabs and outrigger operation completely show the humanity design concept.
• Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.



Specification



Dimension

Unit

QAY180

Overall length

mm

15770

Overall width

mm



Overall height

mm

4000

Weight





Overall weight in transport

kg

60000

Front axle load

kg



Rear axle load

kg



Power





Engine model



TAD720VE    OM460LA.E3A/1

Engine rated power

kW/(r/min)

162/2100   360/1800

Engine rated torque

N.m/(r/min)

2200/1100

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

20

Min. ground clearance

mm



Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

50

Fuel consumption for 100km

L



Main performance





Max. rated total lifting capacity

t

180

Min. rated working radius

mm



Turning radius at turntable tail

m



Max. lifting torque

kN.m

5420

Base boom

m



Fully extended boom

m

62

Fully extended boom+ jib

m



Longitudinal outrigger span

m

8.3

Lateral outrigger span

m

8.9

Working speed





Boom luffing time

s



Boom full extension time

s



Max. swing speed

r/min



Max. speed of main winch (single rope) (no load)

m/min



Max. speed of aux. winch (single rope) (no load)

m/min





The specification is subject to change without notice.
