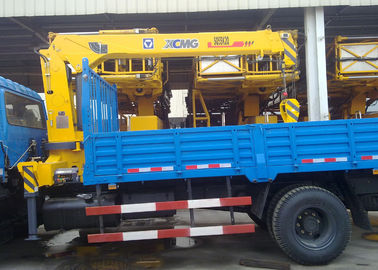

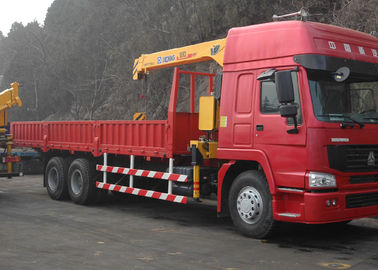

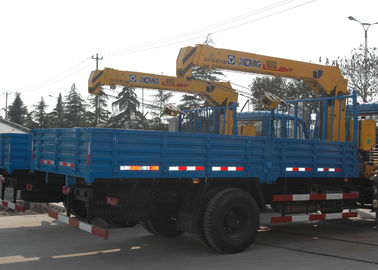

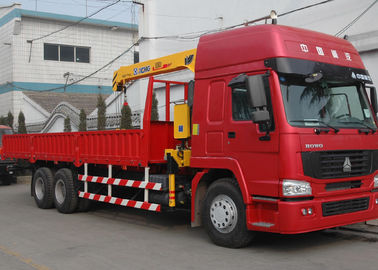

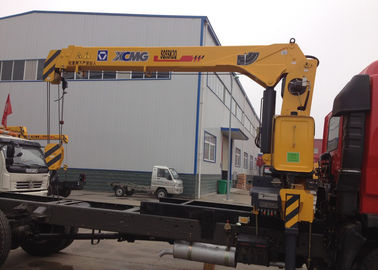

5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price

5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price
5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price

Large Image :  5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ5SK2Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 1000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Telescopic Boom Crane
Max. Lifting Capacity: 5 Ton Max. Lifting Moment: 12.5 T.M
Max. Lifting Height: 10m Crane Weight: 2074 Kg
Oil Tank Capacit: 90L Rotation Angle: All Rotation
High Light:

Hydraulic Mobile Crane

,

Lorry-Mounted Crane



5 Ton Hydraulic Truck Loader Crane, 32 L/min 10m Max Reach with Low Price





Quick Details:



Brand: XCMG

Name: Telescopic boom crane, Hydraulic truck crane

Max. Lifting Capacity: 5 ton

Max. Lifting Moment: 12.5 T.M

Max. Oil Flow of Hydraulic System: 32 L/min

Max. Lifting height: 10meters

Crane Weight: 2074 kg

Oil Tank Capacity: 90 L





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane  SQ5SK2Q is lifting capacity is 5tons, moment is 12.5T.M.

 5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 0



Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­





Specifications:



Model

SQ5SK2Q

Unit

Max. Lifting Capacity

5000

kg

Max. Lifting Moment

12.5

T.M

Recommend Powe

18

kw

Max. Oil Flow of Hydraulic System

32

L/min

Max. Pressure of Hydraulic System

18

MPa

Oil Tank Capacit

90

L

Rotation Angle

All Rotation



Crane Weight

2074

kg

Installation Space

900

mm

Choice of Chassis

CA1140PK2L3EA80 ;

DFL1140B ;

EQ1126KJ1 ;

HFC1132KR1K3 ;

LZ1120LAPT  ;

EQ1141NBJ2 ;

EQ5201GFJ6 ;

EQ5201GFJ6 ;

NXG1160D3ZAL1X



SQ2SK1Q Lifting capability diagram

Working radius(m)

2.5

3.5

6

8.5

Lifting capacity(kg)

5000

2940

1500

1050





 Dimension drawing




5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 1


 Optional parts:



1. Moment limited device
5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 2

  1. Remote control equipment
    5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 3
  2. Anti-overwind magnet valve
     5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 4
  3. High seat on column
    5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 5
  4. Work light
    5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 6
  5. Assisatant stabilizer leg
    5 Ton Hydraulic Truck Loader Crane , 32 L/min 10m Max Reach with Low Price 7



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm






Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity

4, Compact Hinge point design take up smaller space

5, The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.
