Product Details:
Payment & Shipping Terms:
|
| Application: | Factory, Storage,yard Etc | Motor Power: | 0.8-2.2kw |
|---|---|---|---|
| Lifting Height: | 6-30m | Span: | 7.5-22.5m |
| Max.Wheel Pressure: | 3.28-15.43KN | Work Class: | A3 |
| High Light: | single beam overhead crane,electric overhead crane |
||

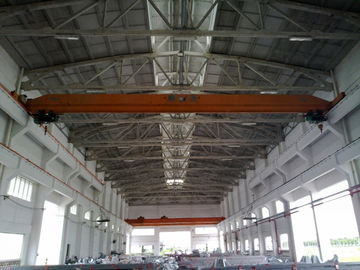

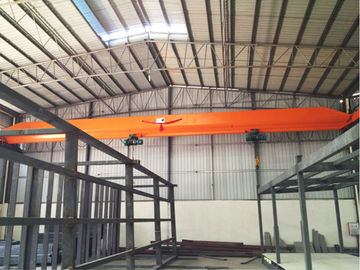

LDE electric single girder overhead crane 3+3/5+5/8+8/10+10 ton
Description:

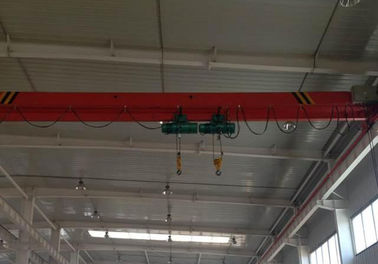

LDE electric single girder crane is developed on the base of LD single beam crane, on its single beam suspending two electric hoists. This two sets of hoist can not only be single action and also linked action, this product can lift long work pieces in workshops, warehouses and other work sites, apply to electroplating, cement pipe and steel base etc.
Technology:
Crane types, specifications and parameters:
| Lifting capacity (t) | 3+3 | 5+5 | 8+8 | 10+10 | |
| Operation type | Ground operation | ||||
| Traveling speed (m/min) | 20 | 20 | 20 | 20 | |
|
motor |
Model | ZDY21-4 | ZDY22-4 | ZDY23-4 | ZDY23-4 |
| Power (kw) | 0.8 | 1.5 | 2.2 | 2.2 | |
|
Rotary speed (r/min) |
1380 | 1380 | |||
|
block |
Model | CD,MD electric block | |||
| Lifting height (m) | 6,9,12,18,24,30 | ||||
|
Lifting speed (m/min) |
8 or 8/0.8 | 8 or 8/0.8 | 5 or 5/0.5 | 7 or 7/0.7 | |
|
Traveling speed (m/min) |
20 | 20 | 20 | 20 | |
| Work class | A3 | ||||
| Power source | 380V 50Hz | ||||
*Detail specifications please contact us!
*Specific size can be customized according to customer demand.
