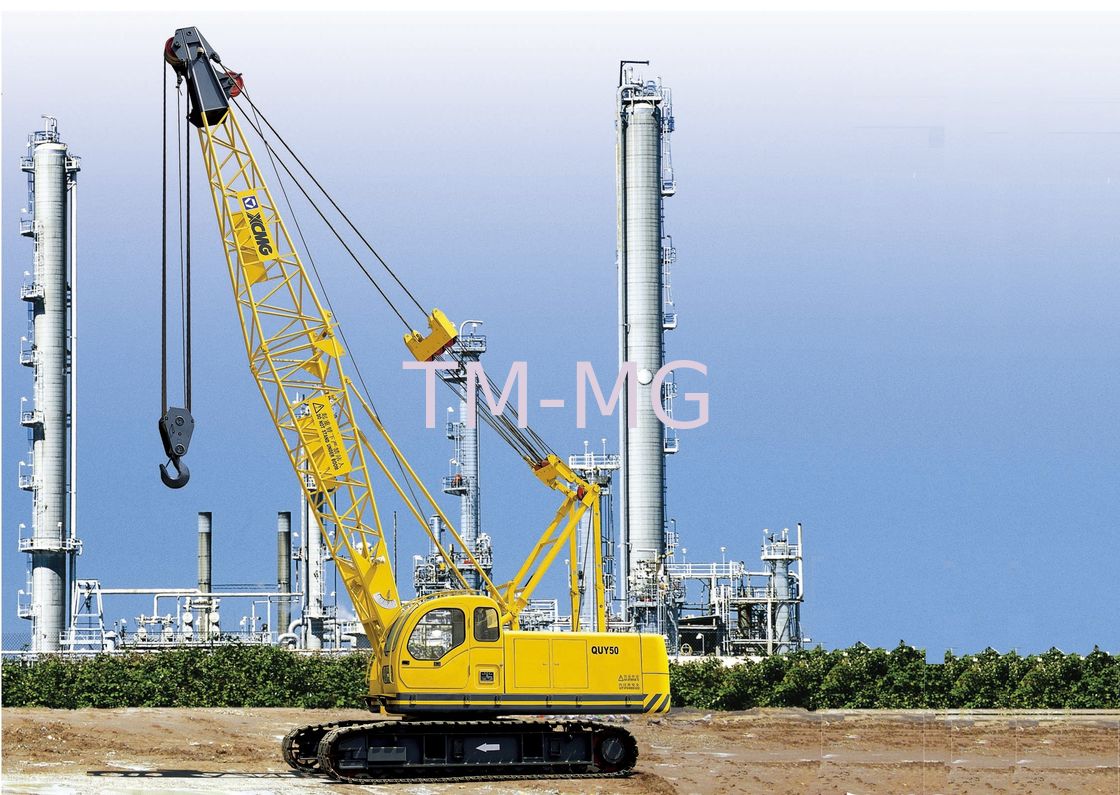

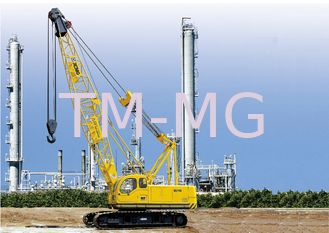

QUY50 Mobile Hydraulic Crawler Crane

QUY50 Mobile Hydraulic Crawler Crane
QUY50 Mobile Hydraulic Crawler Crane QUY50 Mobile Hydraulic Crawler Crane

Large Image :  QUY50 Mobile Hydraulic Crawler Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QUY50
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 1000pcs/year
Detailed Product Description
Product Name: Mobile Hydraulic Crane Max. Load Moment: 1815kN.m
Boom Length: 13~52m Boom Elevating Angle: 0~80°
Fixed Jib Length: 9.15~1m Engine Output: 115kW
Condition: New
High Light:

heavy lifting cranes

,

boom truck crane

Mobile Hydraulic Crane QUY50 , Tracked Lattice Boom Truck Cranes





Principle:



A crane is a type of machine, generally equipped with a hoist, wire ropes or chains, and sheaves, that can

be used both to lift and lower materials and to move them horizontally.  QUY50 crawler crane is an

independent-developed hydraulic drive, full swing and lattice boom crawler crane, absorbing foreign advanced

technology and combining present domestic situations. It features easy and maneuverable control, smooth

vehicle travelling.



Scope of application:



Crawler crane is mainly used for lifting heavy things and transporting them to other places. crawler cranes

make short work of toughest jobs. They are available in a broad range of lifting capacities for applications

 in a wide variety of fields, including heavy-duty foundation work, this product is mainly designed for

 engineering projects like subway, bridge, Petrochemical, power station, nuclear power construction



QUY50 Mobile Hydraulic Crawler Crane 0





Advantages:



1, Rexroth swing reducer

Planetary reducer, controllable constant-close disc brake, high reliability, easy for maintenance.

2. Rexroth gear reducer

Built-in gear reducer with small turning radius, high maneuverability and reliability

3. imported logic valve

logic valve can realize precise logical control and simplify the system, easy for maintenance.

4. Imported PAT load moment indicator

LMI can detect working conditions of crawler crane, having the function of protection.





Safe and comfortable ergonomic design



1. Adjustable boom backstop device

When the boom is elevation upwards, the detector board approaches to detecting switch; when reaching

 maximum elevating angle, the detector board impacts detecting switch and the switch is off, then warning

signal is sent out and the elevating motion stops so as to avoid dangerous accidents.


2. Hydraulic-controlled winch ratchet lock device

The automatic-controlled winch ratchet lock device ensures safe and reliable boom orientation, easy and

comfortable operation.


3. Comfortable Operator’s Cab


Adjustable damping chair can change seat angle; air-conditioner and roller blinds build comfortable operation

environment


4. It embodies the design idea of putting people first. The brand-new design for whole vehicle layout, outline,

 drive’s cab, operator’s cab and control components by using 3 dimensional styling technology and

 ergonomic principle makes the operator more comfortable






Specification:



Item

Unit

Parameter

Max. lifting capacity

Boom

t

50

Jib

t

4

Max. load moment

kN.m

1815

Boom length

m

13~52

Boom elevating angle

°

0~80°

Fixed jib length

m

9.15~15.25

Fixed jib offset

°

10,30

Max. single line hoist speed( at 4th layer with no load)

m/min

65

Max. single line elevating speed( at 4th layer with no load)

m/min

52

Max. swing speed

r/min

1.5

Max. travel speed

km/h

1.1

Max. grade-ability



40%

Mean ground pressure

MPa

0.069

Engine output

kW

115

Total mass (main hook block, 13m boom)

t

48.5

Max. weight of base machine for transport

t

31

Max. dimension of base machine for transport (L×W×H)

m

11.5´3.4´3.4
