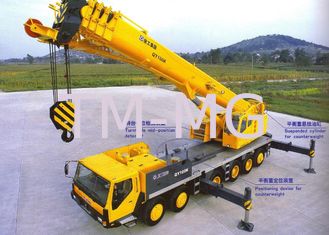

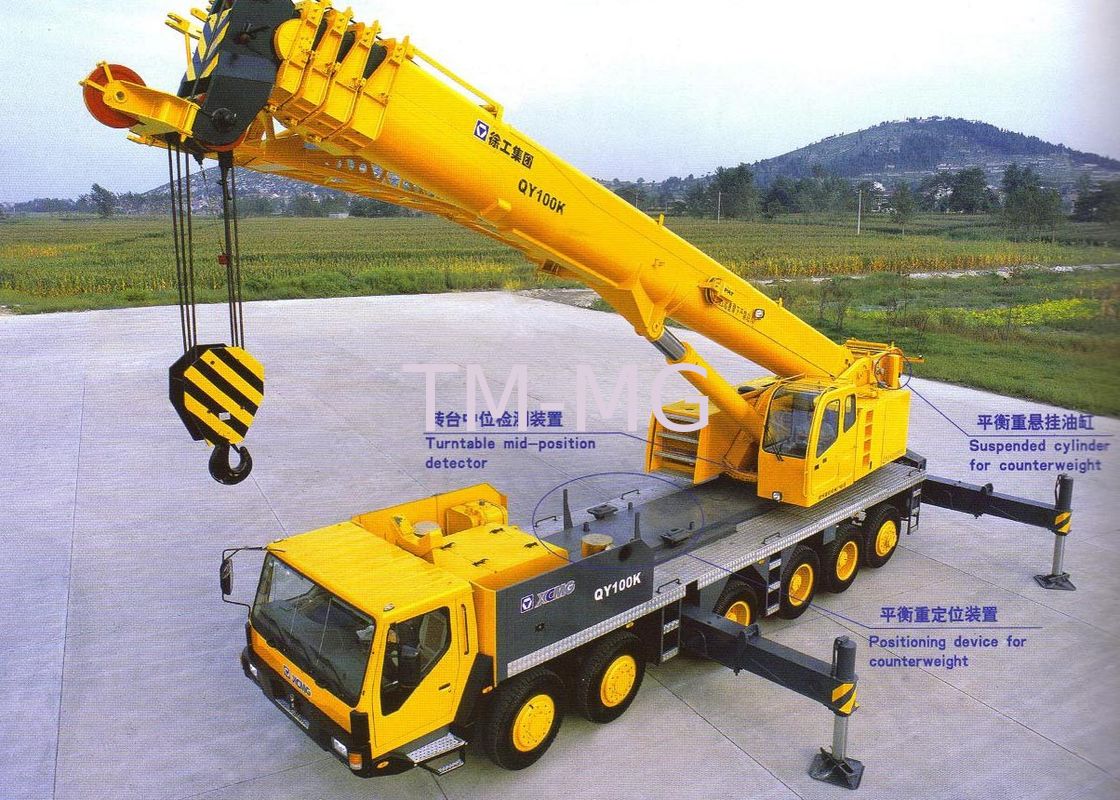

Load Sensing Hydraulic Mobile Crane

Load Sensing Hydraulic Mobile Crane
Load Sensing Hydraulic Mobile Crane Load Sensing Hydraulic Mobile Crane

Large Image :  Load Sensing Hydraulic Mobile Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QY100K-I
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Model: QY100K-I Engine Model: TAD720VE OM460LA.E3A/1
Max. Load Moment: 3450kN.m Engine Rated Speed: 1800 R/min
Approach Angle: 20° Departure Angle: 14°
High Light:

hydraulic truck crane

,

cargo crane truck

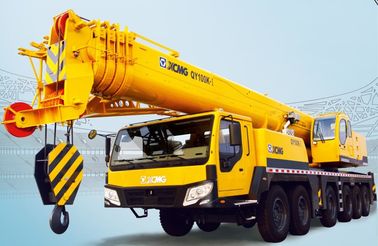

Extended Streamline Boom Hydraulic Mobile Crane 100 Tons QY100K-I





Description:



Our truck crane adopts full luxury cab with large view and new orthodrome streamline operating cab, which is good looking. Adopt five-segment oval rope retractable boom with double-cylinder and two-segment jib, greatly improving the working scope of the machine. The design of the streamline boom head is in keeping with the style of the machine. The boom and jib adopt new connection method, which is convenient to dismantle and install. It is equipped with the high-power environment protection engine, improving the chassis power and the trafficability. More excellent performance

QY100K-I lifting capacity is 100tons





Applications:



Truck Cranes has unique expertise in many product applications. Our team combined by engineers and product specialists have on-site knowledge of the unique challenges facing our equipment in a wide variety of applications.





Specifications:



Model No.



QY100K-I

Max. total rated lifting load

kg

100000

Max. lifting height

m

70.4

Max. load moment

kN.m

3450

Engine model



TAD720VE OM460LA.E3A/1

Engine output power

kW/(r/min)

174/2300 360/1800





Dimension

Unit

QY100K-I

Overall length, width, height

mm

15600×3000×3850

Wheel base

mm

1420+2420+1800+1420+1505

Weight





Total weight in travel

kg

54900   58000

Axle load





Axle 1

kg

7500    7500

Axle 2

kg

7500    7500

Axle 3

kg

8300    10000

Axle 4

kg

12000    12500

Axle 5

kg

12000    12500

Axle 6

kg

7600       8000

Power





Engine rated power

kW/(r/min)

360/1800 (306/1900)

Engine rated torque

N.m/(r/min)

2200/1300 (2010/1200)

Engine rated speed

r/min

1800 (1900)

Min. ground clearance

mm

310

Travel





Approach angle

°

20

Departure angle

°

14

Braking distance (at 30km/h)

m

≤10

Max. grade ability

%

40

Min. turning diameter

m

24

Fuel consumption for 100km

L

70

Main performance

Max. rated total lifting capacity

m

100

Min. rated working radius



3

Turning radius at turntable tail





Counterweight

mm

4200

Aux. winch

mm

4590

Max. lifting torque



3450

Base boom

kN.m

3450(4m×88t)

Fully extended boom

kN.m

1950(24m×7.1t)

Fully extended boom+ jib

kN.m

1230(19.2m×6t)

Outrigger span (full extension)





Longitudinal

m

7.56

Lateral

m

7.6

Lifting height





Base boom

m

13.5

Fully extended boom

m

50.9

Fully extended boom+ jib

m

70.4

Boom length

m

13.5

Fully extended boom

m

51

Fully extended boom+ jib

m

51+18.1+4

Working speed





Jib setting angle

°

0,15,30

Boom luffing time

s

75

Boom





Boom telescoping time





Full extension

s

160

Max. swing speed

r/min

2

Outrigger extension/retraction time





Outrigger beam in extension/retraction

s

25/15

Outrigger jack in extension/retraction

s

45/25

Lifting speed (single rope, layer 4)





Main winch

m/min

105

Aux. winch

m/min

104





Competitive Advantage:



•The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.


•The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.


•Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.


•The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.


•Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.


•The humanity design makes the cab and control cab more spacious, and easy to operate.


•Six unique manufacturing technologies ensure the high quality.


•The working condition expands twice. Newly add 5t counterweight.
