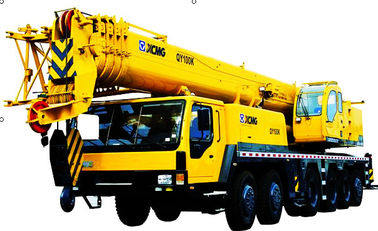

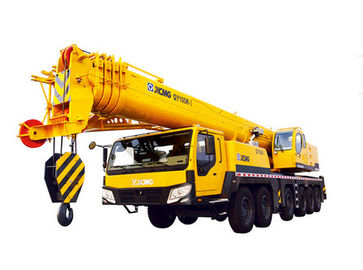

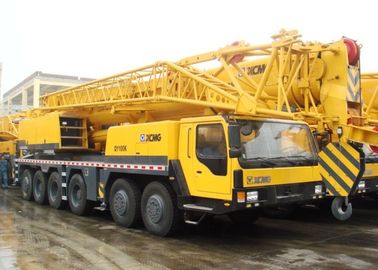

Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k

Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k
Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k

Large Image :  Heavy 100 Ton Truck Crane Hydraulic Mobile Crane QY100k Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QY100K
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Brand: XCMG Product Name: Truck Crane
Max. Total Rated Lifting Capacity: 100t Base Boom: 12.8m
Fully Extended Boom: 48m Fully Extended Boom + Jib: 48+18.1m
Max. Grade-ability: 40%
High Light:

mobile hydraulic crane

,

hydraulic truck crane



Durable 100ton Truck Crane Hydraulic Mobile Crane QY100k



Feature

• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.

Parameter:



Classificatory

Item

Unit

Parameter

Outline Dimension

Overall length

mm

15230

Overall width

mm

3000

Overall height

mm

3860

Mass

Total mass in travel state

kg

65000

Travel Performance

Travel speed

Max. travel speed

km/h

75

Min. stable travel speed

km/h

0.5

Turning diameter

Min. turning diameter

m

24

Min. turning diameter at boom tip

m

26.6

Power ratio

kW/t

7.3

Min. ground clearance

mm

310

Approach angle

(°)

23

Departure angle

(°)

15

Braking distance (at 30km/h)

m

≤10

Max. grade-ability

40

Power

Engine rated output

kW/(r/min.)

324/1800

Engine rated torque

N.m/(r/min.)

2100/1200





Main Technical Data for Lifting Operation



Classificatory

Item

Unit

Parameter

Lifting Performance

Max. total rated lifting capacity

t

100

Min. rated working radius

m

3

Max. load moment

Base boom

kN.m

3238

Fully extended boom

kN.m

1670

Fully extended boom + Jib

kN.m

1127

Outrigger span

Longitudinal

m

7.56

Lateral

m

7.6

Boom length

Base boom

m

12.8

Fully extended boom

m

48

Fully extended boom + Jib

m

48 + 18.1

Jib offset angle

°

0, 15, 30

Working Speed

Boom elevating time

Boom raising

s

60

Boom telescoping time

Full extending / Full retracting

s

140

Max. swing speed

r/min

2

Hoist speed (single line at 4th layer)

Main winch

m/min

110

Aux. winch

m/min

85



The specification is subject to change without notice.




FAQ

1. What is your MOQ?

MOQ: 1pcs or set.

2. What is your payment terms?

100% T/T before shipment Or irrevocable L/C at sight or we can negotiate.

3. What is your delivery time:

7 to 15 days after we receive the deposit;

4. What is the location of your company?

Our company is located in Xuzhou City, Jiangsu Province, China. Welcome to us.
