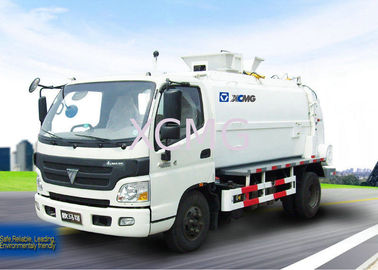

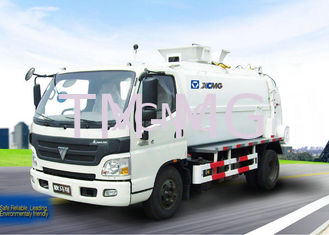

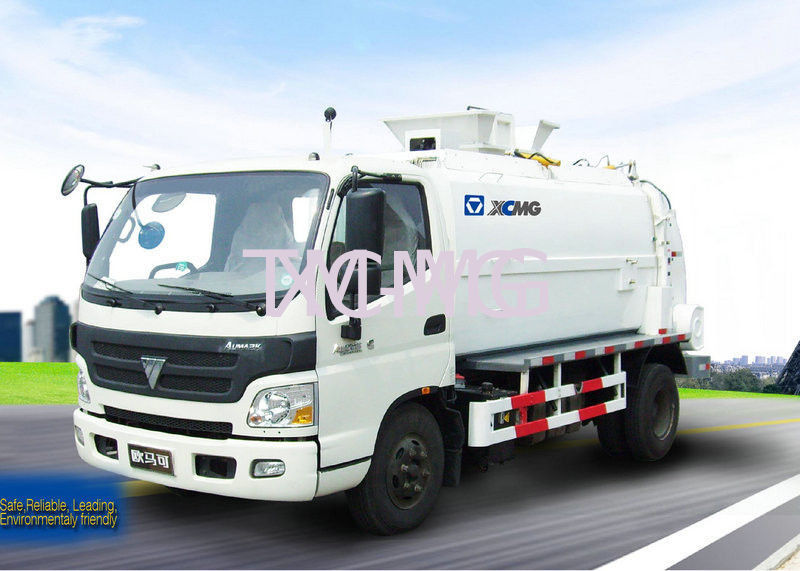

Food Waste Collection Trucks XZJ5070TCA For The Food Waste From Hotel, Restaurant

Food Waste Collection Trucks XZJ5070TCA For The Food Waste From Hotel, Restaurant
Food Waste Collection Trucks XZJ5070TCA For The Food Waste From Hotel, Restaurant

Large Image :  Food Waste Collection Trucks XZJ5070TCA For The Food Waste From Hotel, Restaurant Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: XZJ5070TCA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 50% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Vehicle Model: XZJ5070TCA Chassis Model: NKR77LLPACJAY
Total Mass: 7300kg Curb Weight: 4300/4100kg
Box Type: Container Cabinet Capacity: 4.3 M3
Wheelbase: 3360mm
High Light:

road wrecker truck

,

rescue tow truck



Food Waste Collection Trucks XZJ5070TCA For The Food Waste From Hotel, Restaurant





Description:



Food waste collection trucks: A lifting equipment is attached to raise the waste bin, intensity of labor is decreased and the working condition is improved. Compressor is installed in the container to compress the waste and separate the solid and liquid initially. Waste in the container pushed out by ejector plate will unloading, only one operator needed.





Application:



Food waste collection trucks is mainly for receive and transport the food waste from hotel, restaurant and mess and dining hall.

­



Specification:



Vehicle model

XZJ5070TCA

Chassis model

NKR77LLPACJAY

Total mass

7300kg

Curb weight

4300/4100kg

Rated contained mass

2870/3070kg

Box type

Container

Cabinet capacity

4.3 m3

Sewage tank capacity

0.25 m3

Solution tank capacity

0.26 m3

Discharge form

Sealed unload/push unload

The maximum pressure of the hydraulic system

14Mpa

Dimensions

5840*2100*2600mm

Wheelbase

3360mm

Trash volume

120/240L





Competitive Advantage:



  1. It is used for collecting and transporting residual food arise from hotel restaurant and mess hall.
  2. Adopt machine-electric- hydraulic integration control systems, easy to operate and working safety.
  3. Providing sealing discharge and pashing discha rge two froms to adapt to different users.
  4. The key units of hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts.
  5. Parts that are highly resistant to corrosion after acid pickling.
  6. Fine sealed property that can prevent sewage from overflow to avoid pollution again.
  7. Stainless steel water tank and a high-pressure pump are supplied for the machine, it is convenient for cleaning vehicle and worksite.
