|Brand:||XCMG||Product Name:||Knuckle Boom Crane|
|Max. Lifting Capacity:||2000 Kg||Max. Lifting Moment:||3.2 T.m|
|Max. Lifting Height:||7.5m||Crane Weight:||608 Kg|
|Oil Tank Capacity:||25L||Rotation Angle:||370°|
articulating boom crane

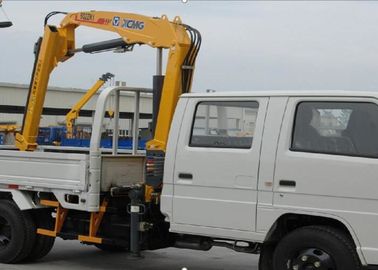

Durable Lifting Knuckle Boom crane truck mounted 7.5m Max Lifting Height
Name: Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane
Max. Lifting Capacity: 2000 kg
Max. Lifting Moment: 3.2 t.m
Max. Oil Flow of Hydraulic System: 20 L/min
Max. Lifting height: 7.5meters
Crane Weight: 608 kg
Oil Tank Capacity: 25 L
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
XCMG is the first company to develop newer design truck loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.
Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

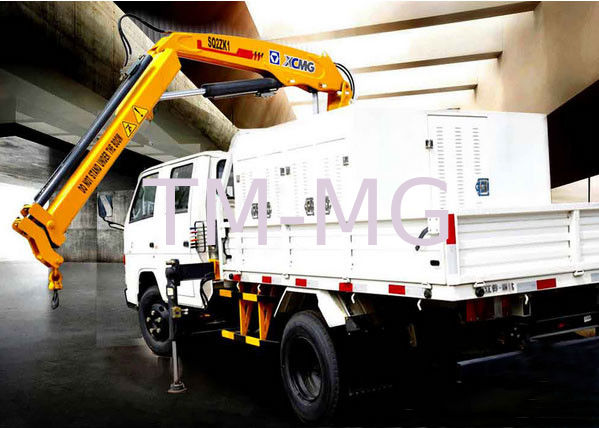

Knuckle boom crane SQ2ZK1 is used for lifting 2tons, moment is 3.2T.M.
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
|Max Lifting Moment||3.2||t.m|
|Max Lifting Capacity||2000||kg|
|Recommend Power Needed At Recommend Oil Flow||9||kw|
|Max Oil Flow of Hydraulic System||20||L/min|
|Rated Pressure Of Hydraulic System||20||MPa|
|Oil Tank Capacity||25||L|
|Choice of Chassis||
|SQ2ZK1 Lifting capability diagram|
|Working radius (m)||2||3.7||5.05|
|Lifting capacity (kg)||2000||1050||750|
1.Remote control equipment
2.Moment limited valve
3.High seat on column
5.Assisatant stabilizer leg
1, Advanced development & analysis means make sure design is very reliable
2, Higher lifting capacity with tour connected bar mechanism
3, Flange telescopic boom coupling technology
4, Self-designed & developed slewing machine with greater drive force can meet varied
requirements of working situation
5, The more symmetrical center design of hexagon boom make it has bigger anti-bending
6, Float three-point bridge structure design can lower the accessional stress on the
chassis frame when traveling
