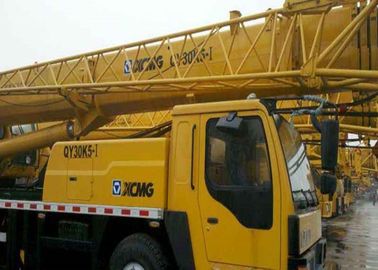

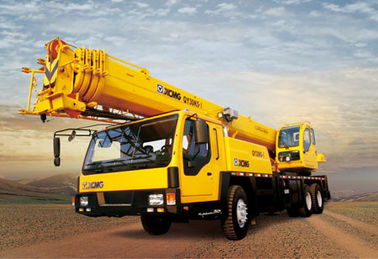

Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane

Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane
Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane

Large Image :  Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE
Model Number: QY30K5-I
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 30-50 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Rated Loading Capacity: 30ton Max. Lifting Height: 48.7m
Rated Lifting Moment: 1025kN.m Span: 6m
Front Axle Load: 7600kg
High Light:

mobile hydraulic crane

,

cargo crane truck



Durable Energy Efficient Hydraulic Mobile Crane QY30K5-I Truck Crane





Technical Parameter



Dimension

Unit

QY30K5-I

Overall length

mm

12570

Overall width

mm

2500

Overall height

mm

3390

Weight





Total weight in travel

kg

32400

Front axle load

kg

7000

Rear axle load

kg

25400

Power





Engine model



SC8DK280Q3

WD615.329

Engine rated power

kW/(r/min)

206/2200

213/2200

Engine rated torque

N.m/(r/min)

1112/1400

1160/1400

Travel





Max. travel speed

km/h

80

Min. turning diameter

m

22

Min. ground clearance

mm

291

Approach angle

°

19

Departure angle

°

13

Max. grade ability

%

40

Fuel consumption for 100km

L

40

Main performance





Max. rated total lifting capacity

t

30

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

1025

Base boom

m

10.6

Fully extended boom

m

40.4

Fully extended boom+ jib

m

48.7

Longitudinal outrigger span

m

5.85

Lateral outrigger span

m

6

Working speed





Boom luffing time

s

68

Boom full extension time

s

150

Max. swing speed

r/min

2.5

Max. speed of main winch (single rope) (no load)

m/min

120

Max. speed of aux. winch (single rope) (no load)

m/min

120





Feature



• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• Extend the lifting space and scope, greatly improving the lifting capacity of the front part
