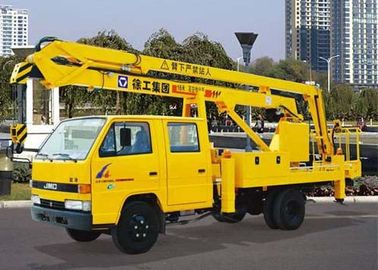

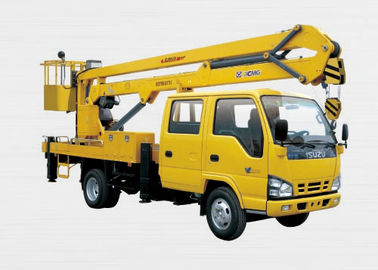

Durable Aerial Working Truck Mounted Lift 9.1m 2000kg
Name: XCMG articulated boom lift, truck mounted boom lift, truck mounted aerial lift, bucket truck lift
Max. Lifting Capacity: 2000kg
Max. Lifting Height: 9.1 m
Max. Operating Height: 14.7m
Max. Operating Radius: 6.7 m
Rated Lood: 200kg
Power of Engine: 96kw
Passengers: 2+3 persons
Feature: three telescopic arms, rotary platform and the working basket
Application: construction needs and building maintenance
XCMG Equipment has a variety of Truck Mounted Aerial Work Platforms ranging in height from 14 to 32 meter-with horizontal reaches up to 18 meters. These lifts are amongst the largest of their kind and are valuable tools for many high reach needs, such as construction needs and building maintenance. XCMG Truck Mounted lifts are rented and manned with two operators. They provide mobility for jobs that must move around to different locations and they provide stabilization for job locations with rugged and uneven work surfaces. Most of all, Truck Mounted Lifts save you time and money and provide you with a safe, reliable option for any project that it demands.
Often referred to as “knuckle booms”, articulating boom lifts are used for reaching up and over machinery, equipment and other obstacles mounted on floors.
Max Operating Height
Max Operating Radius
Max Operating Radius Maximum Operating Height
Max Operating Height Maximum Operating Radius
Max Lifting Capacity
Max Lifting Height
Dimension in Driving(L*W*H)
Power of Engine
1. Proportioning valve and proportion handle are purchased from HAWE, Germany
2. CAN BUS plus manual control panel on rotary platform provide a stepless speed regulating, outstanding control experience.
3. Both the rotary platform and the working basket have the control panel and control the throttle and the engine on/off.
4. Combine auto leveling system include equalizing lever and synchronous cylinder to insure the working basket always level.
5. The 4 outriggers can be controlled separately on horizontal and vertical way.
6. Interlock, soft leg protection functions can ensure the working security
7. Boom cannot slew if the horizontal leg not in right place, but can up and down, both ensure security and improve the efficiency.
8. Equipped with backup pump for emergency
9. Electronic timer record the working time for maintaining.
10. No range limit, all range operate.
11. Both the rotary platform and the working basket can rotate.
12. The three arms, three telescopic arms can expand synchronously.
