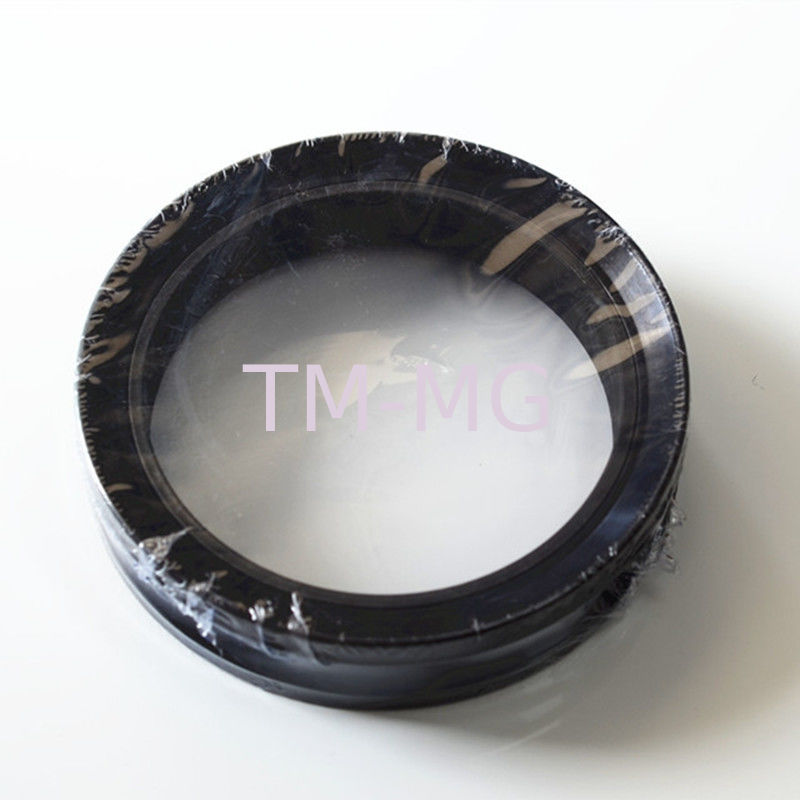

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

I'm Online Chat Now
Certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
Your quality is trusty, we are pleased to choose this reliable partner

—— Minas Gerais

Your good service and prompt reactions are greatly appreciated, your porducts are also highly impressed me by it's good quality and competitive price.

—— S.Sahota

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Large Image :  Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery Get Best Price

Product Details:
Place of Origin: China
Brand Name: ccmie
Certification: ISO
Model Number: 423471
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: standard
Delivery Time: in 20 days
Payment Terms: L/C, T/T
Supply Ability: 10000pc/year
Detailed Product Description
Condition: New Lifetime: 3000 -5000 Hours
Material: Steel 100CR6 + NBR60 Rubber Hardness: 60-65°
High Light:

Duo Cone floating face seal

,

423471

Duo Cone Floating Seal 423471 For Heavy Duty Machinery



Product description:





One set Consists of two metal sealing rings and two rubber rings
Material 100CR6 steel+NBR60
Warranty 18 months
Stock Available
FOB Wuhan ,Shanghai ,Qingdao ,Ningbo ,Shenzhen ,Xiamen
Package Shrink films +inner box + standard export carton + wood pallet + wood box
Application Constuction machinery ,farm machinery ,coal mining machinery



Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery 0



Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery 1

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery 2

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery 3



METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness     ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range -100~200°C -40~160°C
Hardness (HRC) 58-62 62-68
Lifetime (Hours) 3000-5000 5000-8000



Method of installation



1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery 4



Other parts number you need can contact us to check!
