|Material:||Steel 100CR6 + NBR60||Metal Hardness:||58-62HRC|
62HRC floating seal assembly,
HRC 62 floating seal assembly,

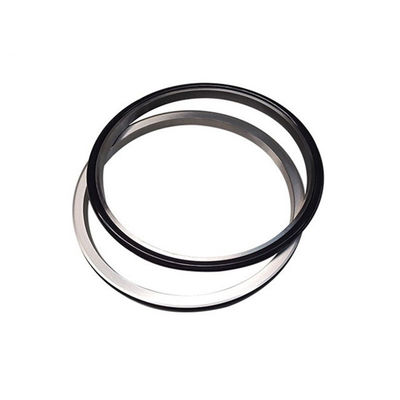

D275A-5 Travel Motor Floating Seal Assembly 425-33-00011/00110/00111

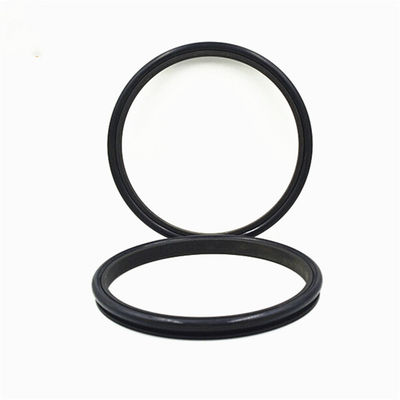

|1 set||Consists of two metal sealing rings and two rubber rings|
|Material||100CR6 steel + NBR60|
|Package||Shrink films + inner box + standard export carton + wood pallet + wood box|
Mechanical face seals are precision components, the smallest of material and design details can influence the quality.The metal ring is processed by CNC machine,the fine precision increase O-ring gripping ability,eliminating O-ring sliding,ensure runs smoothly.
Polishing attained by lapping process.The surface flatness of Rvton products is within 3 light bands of Optical interference of monochromatic light., our standard of the working surface roughness is ≤Ra 0.1μm.
Floating seals are designed to withstand extreme wear and tear.Specifically engineered for heavy duty, rotating applications, floating seals are designed to withstand extreme wear and tear.It Is four types floating seals: Standard Type / XY-type / L type / iron plate type.
Other parts number you need can contact us to check!
